Zone Offroad 6 Inch Lift Kit with Radius Arms and FOX Shocks For 2005-2007 Ford F-250/F-350 5.4L/6.8L
SKU:
ZONF39F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,606.45
- $1,606.45
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Transform your 2005–2007 Ford F-250/F-350 Super Duty 4WD Gas with this Zone Offroad 6” Radius Arm Lift Kit engineered to deliver commanding stance, increased ground clearance, and clearance for up to 37” tires. This complete system features full-length coil springs, heavy-duty 1/4" steel radius arms, steering correction components, and a rear lift block with add-a-leaf setup to level the truck while improving strength and load capacity.
Designed for proper suspension geometry and long-term durability, the high-strength radius arms correct caster while increasing ground clearance over traditional drop brackets. Brake line relocation brackets, sway bar brackets, and bump stop extensions maintain proper operating angles. Paired with FOX 2.0 Adventure Series monotube shocks, this lift system delivers improved damping control, confident highway ride quality, and serious off-road capability.
Features:
- Heavy-duty 1/4" steel radius arms improve strength
- Corrects caster and improves steering geometry
- Full-length coil springs maintain ride quality
- Rear add-a-leaf increases load capacity
- Rear lift block levels stance properly
- Brake line and sway bar relocation brackets
- Bump stop extensions protect suspension travel
- Clears up to 37" tires with proper wheels
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 6 inches
- Rear Lift Height: 4 inches
- Front Lift Method: Coil Spring and Radius Arm
- Rear Lift Method: Block and Add-A-Leaf
- Drive Type: 4WD Only
- Engine Fitment: 5.4L V8 and 6.8L V10 Gas
- Shocks Included: FOX 2.0 Adventure Series
- Shock Design: Monotube Internal Floating Piston
- Max Tire Size: 37 x 12.50 (trimming may be required)

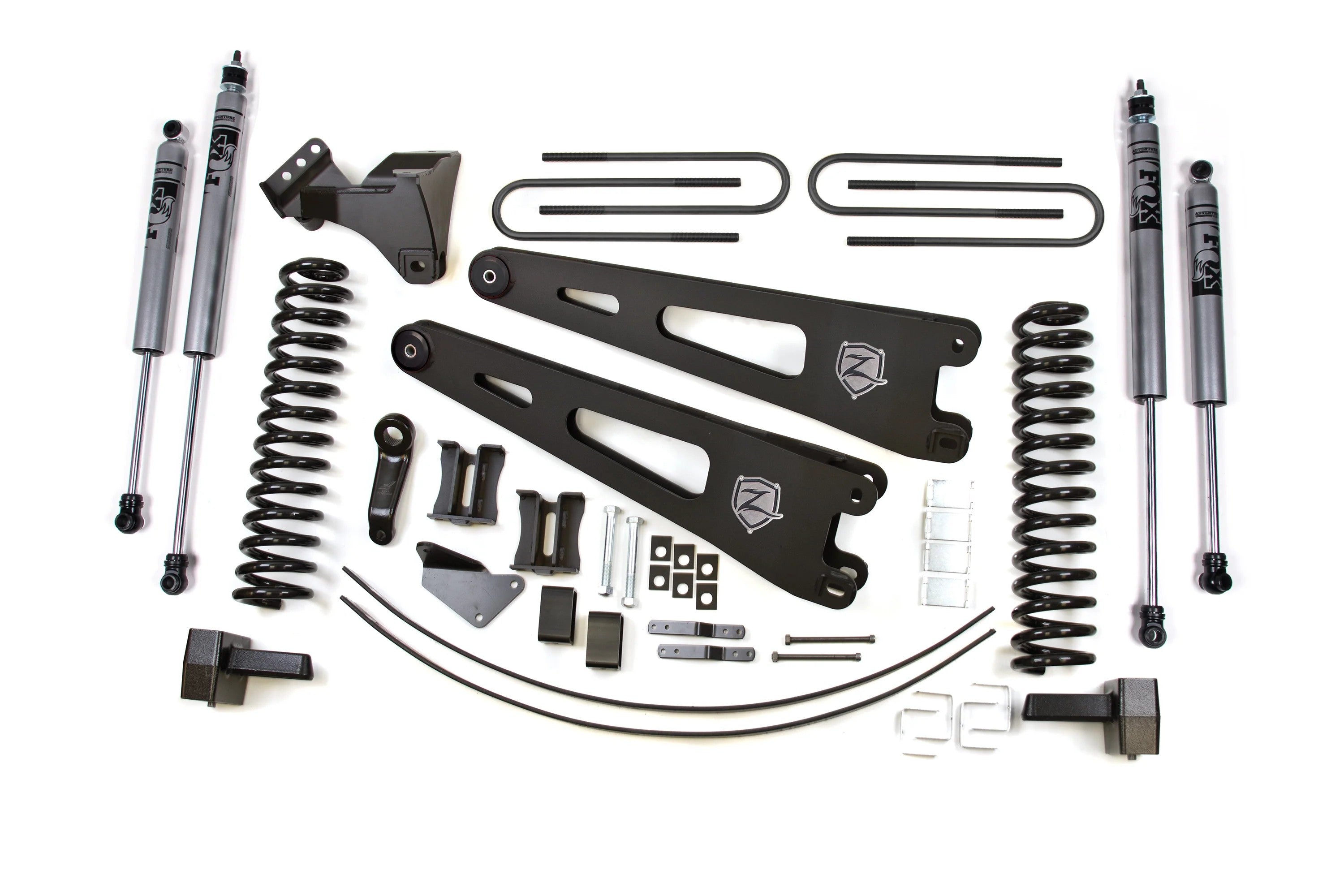

Included:
- (2) Front Coil Springs
- (2) Heavy-Duty Radius Arms
- (1) Dropped Pitman Arm
- (2) Rear Lift Blocks
- (2) Rear Add-A-Leaf Springs
- (4) Extended Rear U-Bolts
- (2) Sway Bar Relocation Brackets
- (2) Brake Line Relocation Brackets
- (2) FOX 2.0 Front Shocks
- (2) FOX 2.0 Rear Shocks
- (1) Hardware Kit
Fitment:
- 2005-2010 Ford F-250 Super Duty 5.4L V8 4WD
- 2005-2010 Ford F-250 Super Duty 6.8L V10 4WD
- 2005-2010 Ford F-350 Super Duty 5.4L V8 4WD
- 2005-2010 Ford F-350 Super Duty 6.8L V10 4WD
Notes:
- 3 Year Warranty
- If your vehicle is equipped with a 4" rear block and top mounted overload or helper spring, longer U-bolts may be required. See kit configurator to add longer U-bolts if needed.
- Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
- This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft once lifted. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
