Zone Offroad 7 Inch Lift Kit with FOX Shocks For 2020-2022 Ford F-250/F-350 6.7L Powerstroke 4WD
SKU:
ZONF62F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,474.55
- $1,474.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your 2020–2022 Ford F-250 or F-350 Super Duty 6.7L Power Stroke 4WD to the next level with the Zone Offroad 7” Suspension Lift Kit featuring FOX shocks. Designed specifically for diesel-equipped models, this system corrects suspension geometry while delivering an aggressive stance and clearance for up to 37-inch tires. Built with full-length diesel-specific coil springs, heavy-duty radius arm drop brackets, and steering correction components, this kit maintains proper driveline angles and factory ride quality.
Engineered for strength and durability, the system includes a forged pitman arm, heavy-duty track bar relocation bracket, and rear lift block kit to properly level the stance. Paired with premium FOX shocks, this lift provides enhanced damping control for improved on-road handling and off-road capability. Backed by Zone Offroad’s 5-year/60,000-mile drivetrain warranty and limited lifetime warranty, this kit delivers serious performance with peace of mind.
Features:
- Radius arm drop brackets correct suspension geometry
- Forged pitman arm restores proper steering angles
- Track bar bracket re-centers front axle position
- Diesel-specific full-length coil springs improve ride
- FOX shocks enhance damping and off-road control
- Rear lift blocks level rear stance properly
- Clears up to 37-inch tires with proper wheels
- Maintains strength for heavy-duty diesel applications
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 7 inches
- Rear Lift Method: Lift Block
- Drive Type: 4WD Only
- Engine Compatibility: 6.7L Power Stroke V8 Diesel
- Shock Type: FOX Performance Series
- Front Lift Method: Full-Length Diesel Coil Springs
- Maximum Tire Size: 37 x 12.50
- Wheel Compatibility: Factory wheels compatible with OE tires
- Warranty: 5-Year/60,000-Mile Drivetrain Warranty

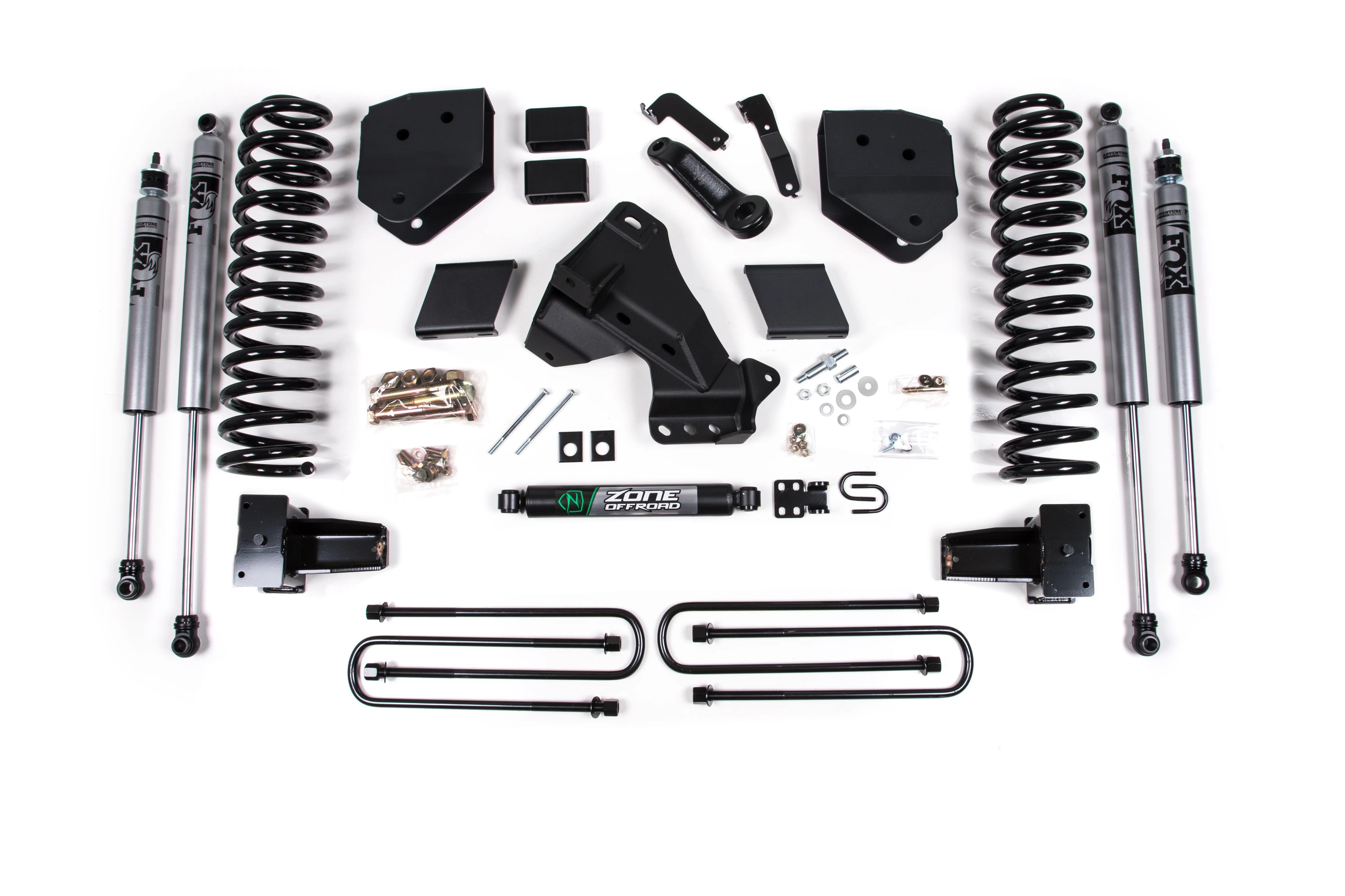

Included:
- (2) Front Full-Length Diesel Coil Springs
- (2) Radius Arm Drop Brackets
- (1) Forged Pitman Arm
- (1) Front Track Bar Relocation Bracket
- (2) FOX Front Shocks
- (2) FOX Rear Shocks
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Hardware Kit
Fitment:
- 2020–2022 Ford F-250 Super Duty 6.7L Powerstroke 4WD
- 2020–2022 Ford F-350 Super Duty 6.7L Powerstroke 4WD
Notes:
- 3 Year Warranty
- Diesel models only
- Fits SRW models only
- 37x12.50 tires may require minor trimming
- Factory wheels fit when paired with factory / original equipment tire size
- Front exhaust modification may be required to clear front drive shaft
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift
