Zone Offroad 6 Inch Suspension Lift Kit with FOX Shocks For 19-24 Ram 1500/Rebel 4WD without Factory 22 Inch Wheels

SKU: ZOND96F

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,633.55
$1,633.55

Free Shipping

Free ground shipping on all orders over $99
Description

Transform your 2019–2024 Ram 1500 4WD with the Zone Offroad 6" Lift Kit featuring heavy-duty components, precision-engineered geometry correction, and premium FOX 2.0 Adventure Series rear shocks. Designed for confident on-road handling and improved off-road capability, this system delivers the lift, clearance, and stance your Ram deserves. With room for up to 37" tires, this kit dramatically enhances both performance and appearance.

Zone Offroad equips this system with high-strength crossmembers, CNC-machined steering knuckles, a front strut spacer setup, differential relocation brackets, and a heavy-duty differential skid plate. Rear 5" coil springs and FOX 2.0 IFP shocks maintain ride quality and stability. Whether daily driving, towing, or exploring off-road terrain, this lift kit provides reliable performance and long-term durability.

Features:

  • High-strength knuckles correct steering angles for proper alignment
  • Strut spacer system lifts front and maintains factory-like ride quality
  • FOX 2.0 rear shocks deliver smooth IFP performance and control
  • Rear 5" coil springs improve stance while preserving ride comfort
  • Differential skid plate protects components during off-road use
  • Crossmembers strengthen the chassis and correct suspension geometry
  • Driveline brackets maintain proper CV and axle operating angles
  • Engineered to clear up to 37" tires for a bold, lifted appearance

Specifications:

  • Brand: Zone Offroad
  • Front Lift Method: Strut spacer
  • Rear Lift Method: Coil spring
  • Front Lift Height: 6 inches
  • Rear Lift Height: 5 inches
  • Shocks Included: Yes (FOX 2.0 Adventure Series, rear only)
  • Shock Design: IFP monotube with 2" steel body
  • Vehicle Drive Type: 4WD
  • OE Knuckle Type Required: Standard knuckle configuration
  • Recommended Tire Size: Up to 37 inches

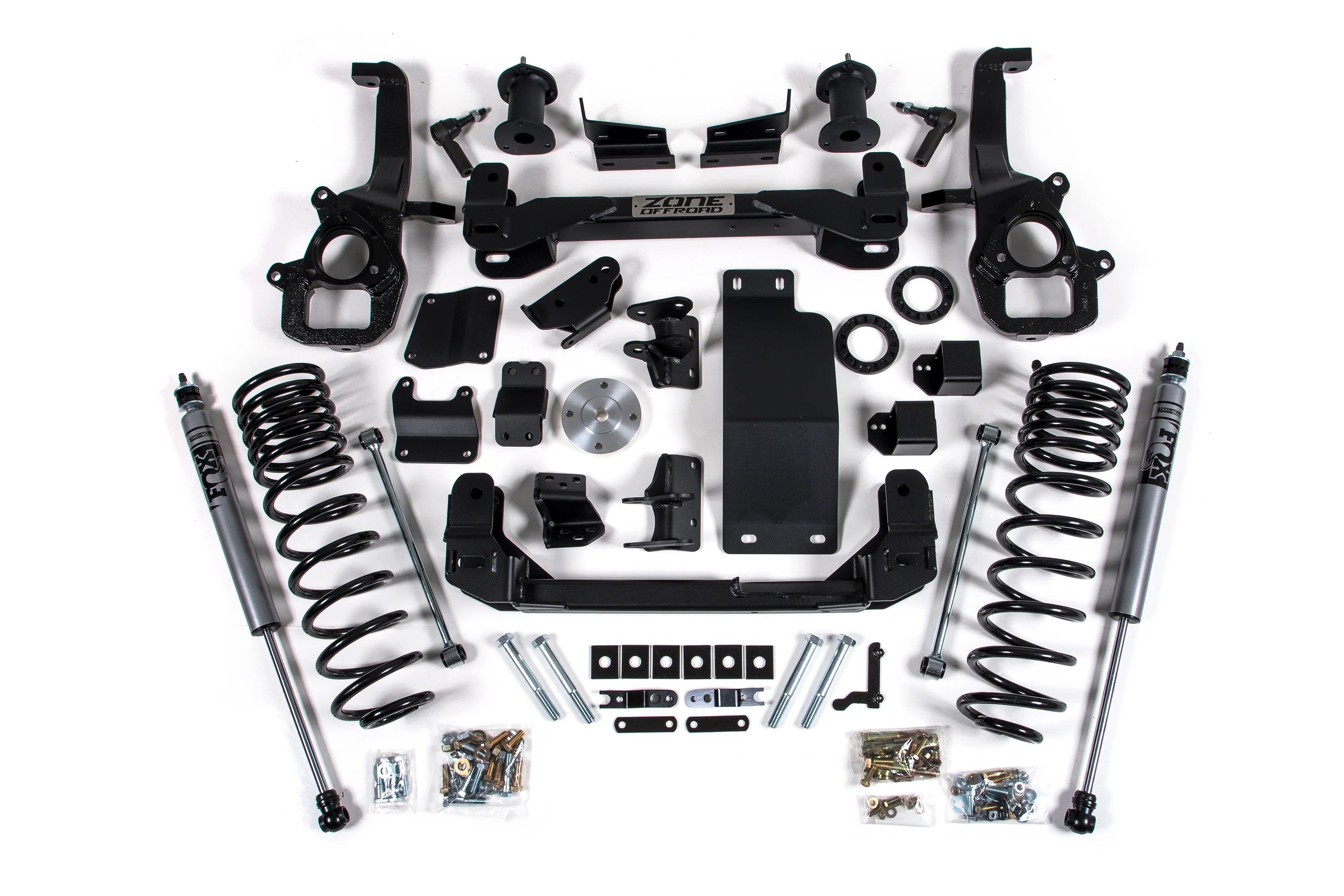

Included:

  • (2) Front Strut Spacers – aluminum
  • (2) High-Strength Front Crossmembers – steel
  • (2) CNC-Machined Steering Knuckles – cast iron
  • (1) Differential Skid Plate – steel
  • (2) Differential Relocation Brackets – steel
  • (2) Rear Coil Springs – steel
  • (2) Rear FOX 2.0 Adventure Series Shocks – 2" IFP monotube
  • (1) Rear Track Bar Bracket – steel
  • (1) Brake Line Relocation Bracket Set – steel
  • (1) Complete Installation Hardware Kit – mixed metals
  • (1) Hardware Kit

Fitment:

  • 2019–2024 Ram 1500 5.7L HEMI 4WD
  • 2019–2024 Ram 1500 3.6L 4WD
  • Fits OE standard knuckle style
  • Ram trucks equipped with factory 22" wheels require large-bore knuckles

Notes:

  • 3 Year Warranty
  • Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines.
  • Vehicles equipped with the Off-Road Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
  • RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Stock 20s can be reinstalled with factory tire size.
  • This kit will NOT work on Diesel models.
  • Does NOT work for models with factory rear airbag suspension.
  • If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
  • *IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
