Zone Offroad 6 Inch Lift Kit with FOX Shocks and UCA For 2019-2024 Chevy Silverado/GMC Sierra 1500 4WD
SKU:
ZONC68F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,845.99
- $1,845.99
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your 2019–2024 Chevrolet Silverado 1500 or GMC Sierra 1500 to the next level with the Zone Offroad 6" Suspension Lift System featuring FOX 2.0 Adventure Series Shocks. Engineered to deliver added ride height, improved strength, and proper geometry, this kit clears up to 35" tires while maintaining solid road manners and trail performance. High-strength crossmembers, ductile-iron steering knuckles, and top-mounted strut spacers form the backbone of a durable and reliable lift setup.
Zone Adventure Series upper control arms improve ball joint angles and wheel travel, while differential drop brackets maintain proper CV angles. FOX 2.0 IFP shocks provide enhanced ride control and fade-free damping on and off the road. With a full set of sway bar, brake line, and bump stop relocation brackets, this system ensures every component stays within proper operating range at full 6" lift height.
Features:
- High-strength crossmembers correct lower control arm position and support
- Ductile iron knuckles maintain steering geometry and proper ESC operation
- FOX 2.0 shocks deliver fade-free damping and improved off-road confidence
- Strut spacers provide lift while maintaining smooth on-road ride quality
- Adventure Series upper control arms enhance strength and wheel travel
- Differential skid plate protects vital components during off-road use
- Rear lift blocks and U-bolts level the stance and maintain load control
- Brake line and sway bar brackets correct component angles after lifting
Specifications:
- Brand: Zone Offroad
- Front lift height: 6 inches
- Rear lift height: 5 inches
- Front lift method: Crossmembers & strut spacers
- Rear lift method: Block & U-bolt kit
- Shock type: FOX 2.0 Adventure Series IFP
- Shock body diameter: 2.0 inches
- Drive type: 4WD
- Max tire size: 35 x 12.50
Wheel and Tire:
- Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels CAN be reinstalled.
- 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
Chevy:
- 37 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS**
- 35 x 12.50 on 17x8, 17x9 w/ 4.5" BS*
- 35 x 12.50 on 20x9, 22x9 w/ 4.5-6.25" BS*
*Trimming may be required
** Trimming is required
GMC:
- 295/70 on 17x8, 17x9 w/ 4.5" BS*
- 295/65 on 20x9 w/ 4.5-6.25" BS*
- 35 x 12.50 on 20x9, 22x9 w/ 5.5-6.25" BS*
*Trimming may be required

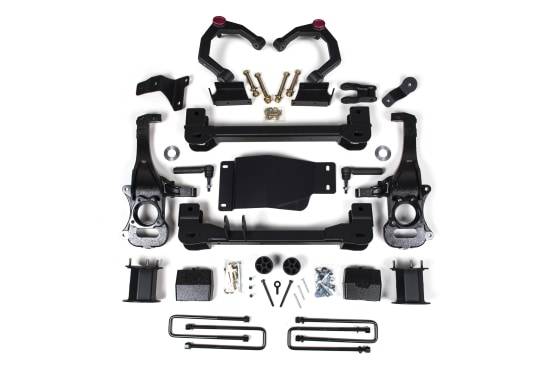

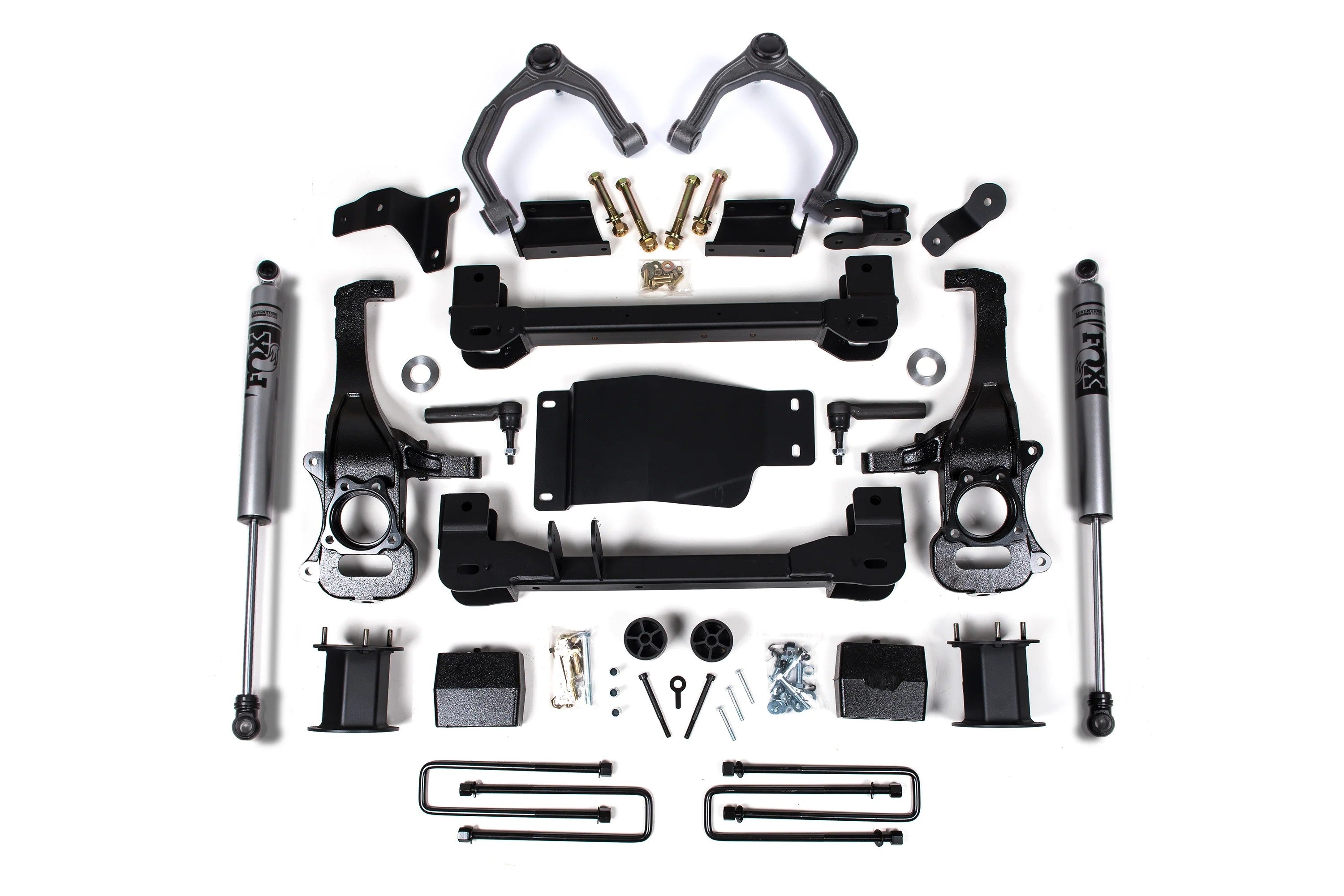

Included:
- (2) Front Crossmembers
- (2) Adventure Series Upper Control Arms
- (2) Steering Knuckles
- (2) Strut Spacers
- (1) Differential Skid Plate
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (2) FOX 2.0 Shocks
- (1) Sway Bar Bracket Kit
- (1) Brake Line Bracket Kit
- (1) Bump Stop Bracket Kit
- (1) Hardware Kit
Fitment:
- 2019–2024 Chevrolet Silverado 1500 2.7L Turbo 4WD
- 2019–2024 Chevrolet Silverado 1500 4.3L V6 4WD
- 2019–2024 Chevrolet Silverado 1500 5.3L V8 4WD
- 2019–2024 Chevrolet Silverado 1500 6.2L V8 4WD
- 2019–2024 GMC Sierra 1500 2.7L Turbo 4WD
- 2019–2024 GMC Sierra 1500 4.3L V6 4WD
- 2019–2024 GMC Sierra 1500 5.3L V8 4WD
- 2019–2024 GMC Sierra 1500 6.2L V8 4WD
Notes:
- 3 Year Warranty
- Fits Gas and Diesel Models
- Requires frame bracket modification
- Will NOT work with Trail Boss or AT4 models
- Will NOT work with 2019-2020 1500 Classic Models
- Will NOT work with Silverado ZR2 or Sierra AT4X models (Use ZONC73)
- This system has not been tested on models equipped with Super Cruise
- Optional front skid plate will not work with 2.7L Turbo or Diesel Engines
- Will NOT work with Adaptive Ride Control (ARC) equipped models. (Use ZONC70 or ZONC72)
- If equipped with a mono-leaf rear spring, please use u-bolt part #UBT4064 (Qty 4 required)
