Zone Offroad 6 Inch Lift Kit | Chevy/GMC 1/2 Ton Truck/SUV (88-98) 4WD

SKU: ZONC14

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,023.80
$1,023.80

Free Shipping

Free ground shipping on all orders over $100

Turn heads and drop jaws when you lift your Chevy with this 6" Lift Kit. This kit has everything you need to clear 35" tires and all the pieces and parts for optimal steering and drivetrain geometry. Fits 4WD 1988 - 1998 Chevy/GM K1500 truck & SUVs.

Features:

  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • Lift system does not change the front track width of the vehicle.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.
  • Relocation bracket allows for reinstallation of the factory spare tire.
  • Upper control arm relocation brackets correct front suspension geometry.



Fitment:

  • 1988 - 1998 Chevy/Gmc 1500 And 2500 6 Lug - 4Wd

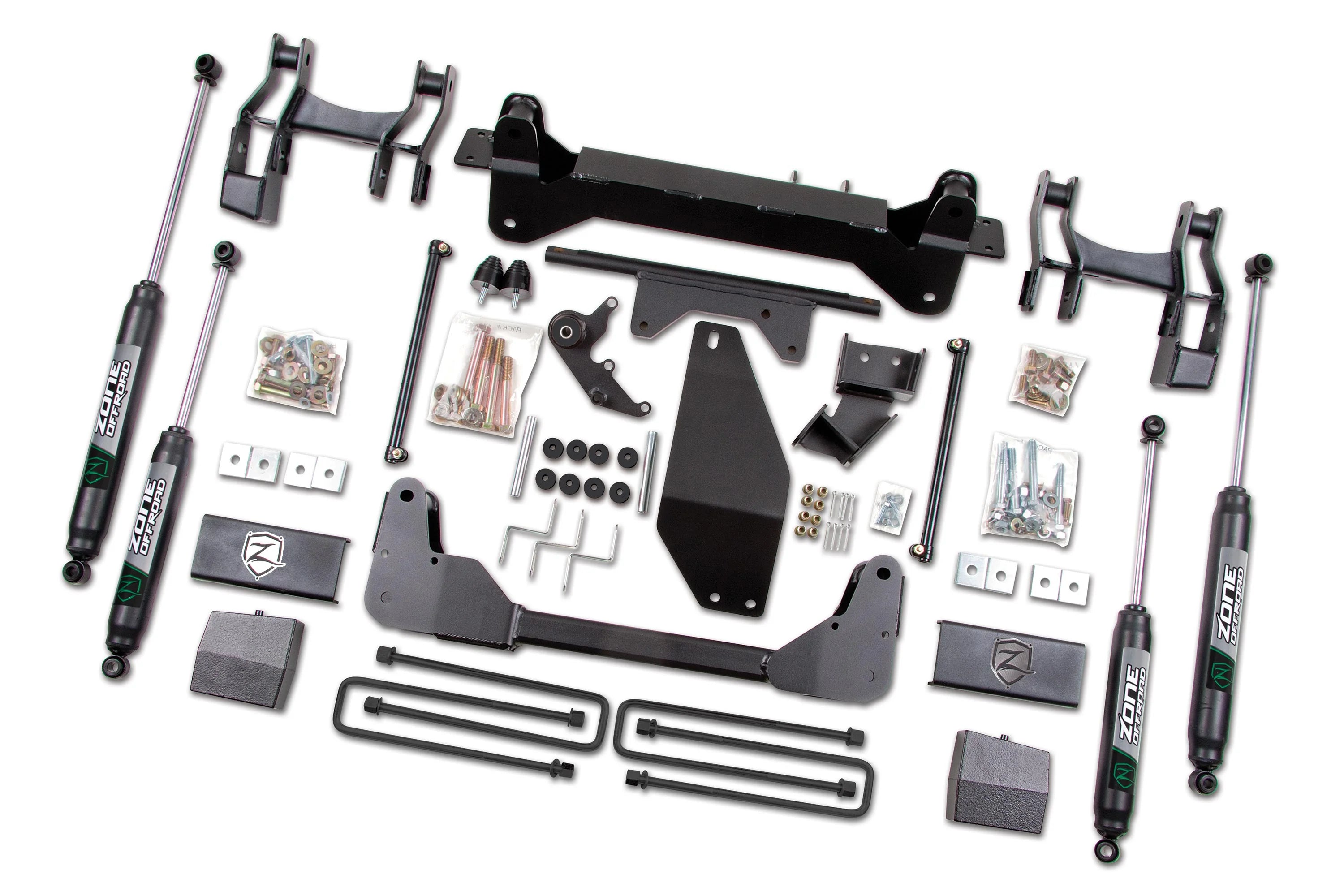

Included:

  • All Necessary Mounting / Installation Hardware
  • Differential Drop Brackets
  • Frame Crossmembers
  • Rear Lift Block & U-Bolt Kit
  • Skid Plate
  • Tie Rod End Adjuster
  • Torsion Bar Crossmember Drop Brackets



Notes:

  • Auto-trac/Front Driveshaft? Models equipped with an auto-trac transfer case may require a new front driveshaft. Auto-trac transfer cases can be identified by a badge on the rear case that reads “NP246”. In addition, the dash mounted display will show the Auto 4WD symbol. Cases with “NP243” are not auto-trac.
  • Exhaust: Requires exhaust modification to clear the front driveshaft. See installation instructions for more information.
  • Fitment: Not recommended for Tahoe/Yukon 4 door models.
  • Does NOT fit 8 lug models.

Product Specs

SKU:
ZONC14
Brand:
Zone Offroad
