Zone Offroad 3.5 Inch Lift Kit with FOX Shocks For 2007-2021 Toyota Tundra
SKU:
ZONT6F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,030.80
- $1,030.80
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 2007–2021 Toyota Tundra with the Zone Offroad 3.5” Adventure Series Lift Kit engineered to improve wheel travel, suspension geometry, and on-road ride comfort while delivering the off-road capability your truck deserves. This system is centered around heavy-duty Adventure Series upper control arms featuring a repositioned ball joint mount that increases wheel travel and eliminates binding common with factory arms. Built from fully welded 1/8" steel with CNC-machined bushing and ball joint cups, these arms include OE-style rubber bushings and MOOG greasable ball joints for long-lasting, low-maintenance performance.
A pair of top-mounted steel strut spacers provide lift without requiring strut disassembly, retaining factory ride characteristics and simplifying installation. Additional components—such as bump stop relocation, sway bar adjustments, and differential drop brackets—maintain proper suspension angles and reduce CV stress on 4WD models. In the rear, upgraded boomerang shackles add 1” of lift to level the stance. Paired with FOX 2.0 Adventure Series shocks, this system delivers improved body control, increased suspension travel, and exceptional durability on any terrain.
Features:
- Heavy-duty boxed UCAs increase strength and eliminate ball joint binding
- CNC-machined bushing and ball joint cups ensure precise suspension geometry
- OE-style rubber bushings deliver quiet, long-lasting performance on-road
- MOOG greasable ball joints withstand off-road abuse and extend service life
- Top-mounted strut spacers provide lift and retain factory ride quality
- Differential drop brackets correct CV angles for reduced wear on 4WD
- Long-lasting black powder-coat finish resists corrosion and impacts
- FOX 2.0 IFP shocks enhance control with race-developed piston design
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 3.5 inches
- Rear Lift Height: 1 inch
- Lift Height Range: 2.0–3.5 inches
- Front Lift Method: Steel top-mounted strut spacers
- Rear Lift Method: Boomerang lift shackles
- Control Arms: Adventure Series boxed steel UCAs with MOOG joints
- Shocks Included: FOX 2.0 Adventure Series (Rear)
- Shock Type: IFP monotube, 2" steel body, 5/8" chrome shaft
- Wheel Fitment: 18x9 / 20x9 with 6.25" backspacing (trimming possible)
- Tire Fitment: Up to 295/60R20 or 305/70R18 depending on wheel setup

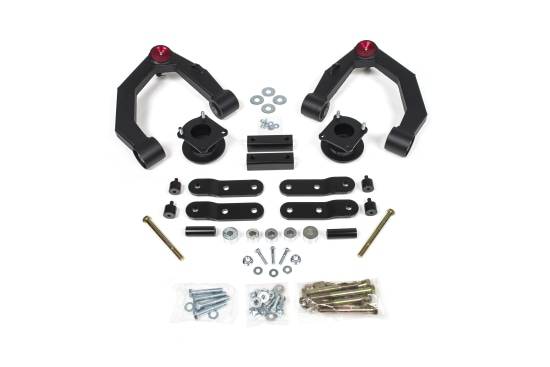

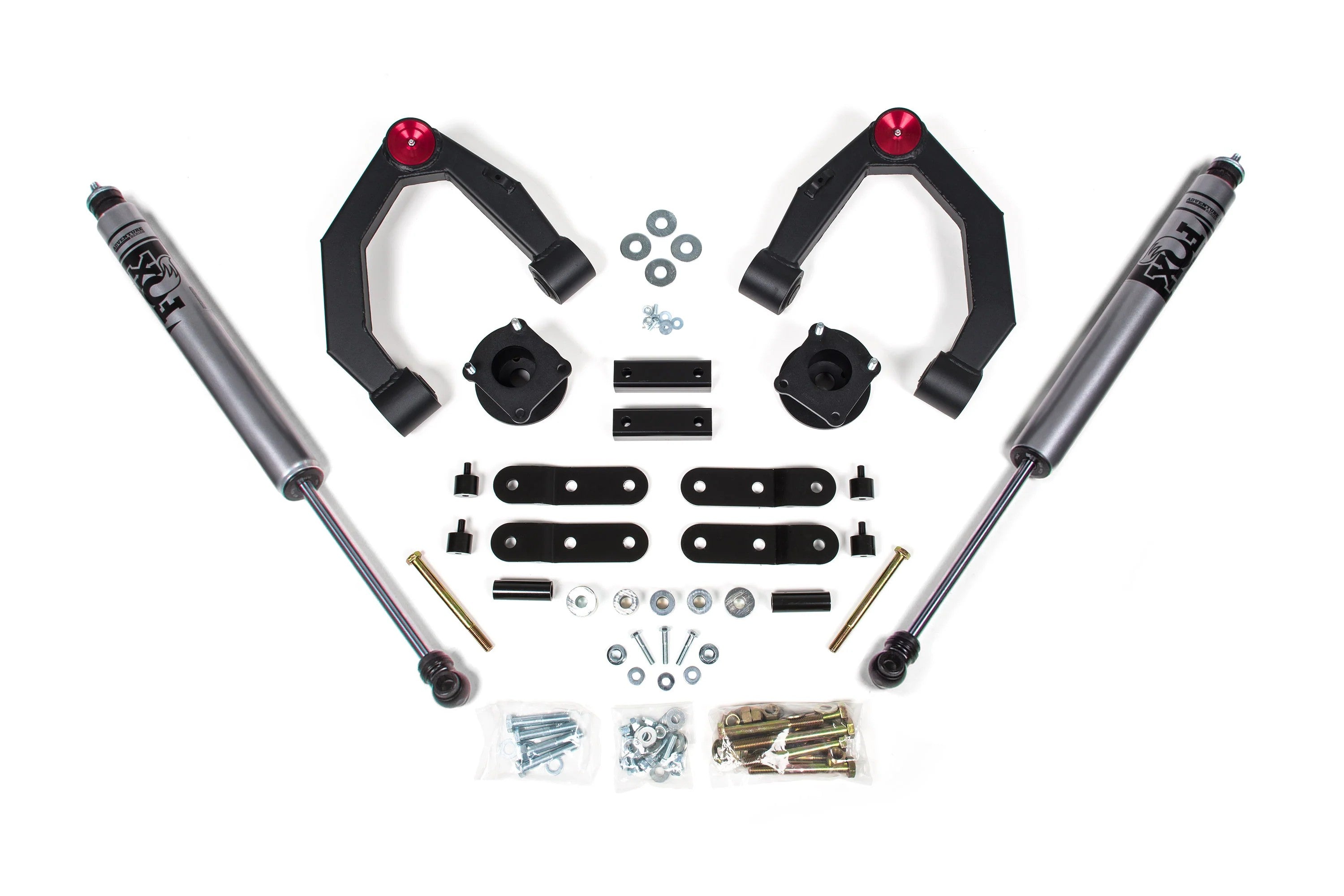

Included:
- (2) Adventure Series Boxed Upper Control Arms steel construction
- (2) Pre-installed MOOG Greasable Ball Joints
- (2) OE-Style Rubber UCA Bushings pre-installed
- (2) Steel Top-Mount Strut Spacers
- (2) Rear Boomerang Lift Shackles
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Relocation Kit
- (1) Differential Drop Spacer Kit
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Hardware Kit
Fitment:
- 2007-2021 Toyota Tundra
- Does not fit TRD Pro
Notes:
- 3 Year Warranty
- Does not fit TRD Pro
- Do Not combine with any other suspension lift
- Differential drop components will not be required on RWD models
Product Specs
SKU:
ZONT6F
Brand:
Zone Offroad
