Zone Offroad 4 Inch Lift Kit with FOX Shocks For 2021-2025 Ford F-150 2.7L/3.5L/5.0L 4WD
SKU:
ZONF91F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,525.60
- $1,525.60
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade the stance, clearance, and capability of your 2021–2025 Ford F-150 4WD with the Zone Offroad 4” Suspension Lift Kit. Engineered to maintain factory ride quality while improving ground clearance and suspension geometry, this system delivers a more aggressive stance and confident handling both on and off the road. Designed for modern F-150 platforms, the 4” front lift paired with a 3” rear block provides clearance for up to 35” tires with the proper wheel setup.
This complete system includes high-strength frame crossmembers, redesigned steering knuckles, front strut spacers, differential drop components, and a rear lift block system for proper driveline angles. FOX 2.0 Adventure Series rear shocks are included to provide consistent damping, improved control, and fade-resistant performance. Built to Zone Offroad’s Factory Protection Plus standards, this kit maintains ESC compatibility while delivering durability, stability, and aggressive style.
Features:
- Optimized kit design improves ground clearance and off-road protection
- Corrects suspension, steering, and driveline geometry for stability
- Redesigned steering knuckles maintain ESC system compatibility
- Front strut spacers retain factory ride quality and handling
- 3" rear lift blocks deliver level to slightly tail-high stance
- FOX 2.0 shocks provide fade-resistant off-road damping performance
- High-strength crossmembers add durability and long-term reliability
- Clears up to 35" tires with proper wheel and tire configuration
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 3 inches
- Front Lift Method: Crossmembers and Strut Spacers
- Rear Lift Method: Lift Blocks and U-Bolts
- Rear Shock Type: FOX 2.0 Adventure Series IFP
- Max Tire Size: 35 inches (trimming may be required)
- ESC Compatibility: FMVSS No.126 Compliant

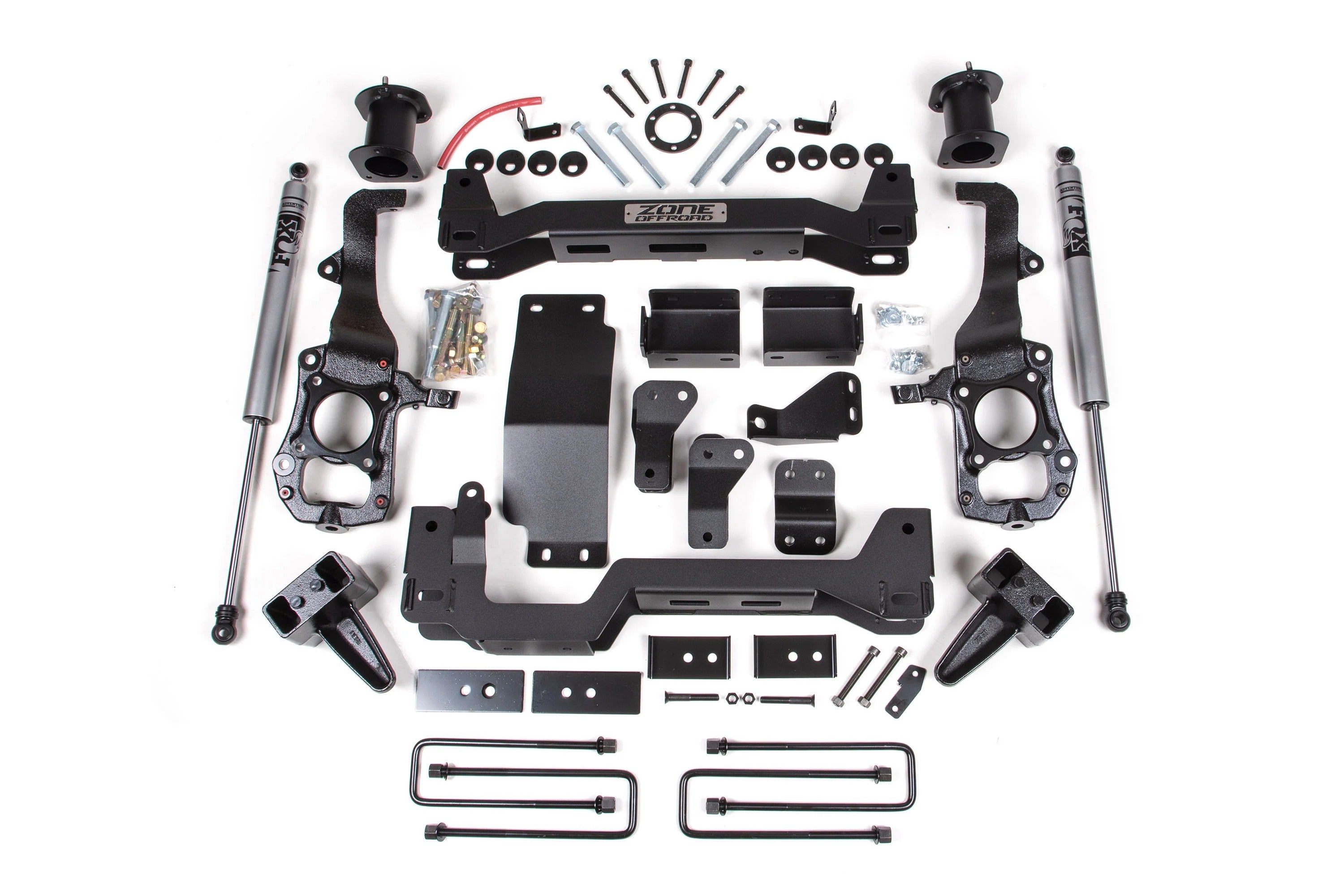

Included:
- (2) Front Frame Crossmembers
- (2) Steering Knuckles
- (2) Front Strut Spacers
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Differential Drop Bracket Set
- (1) Skid Plate
- (1) Hardware Pack
Fitment:
- 2021–2025 Ford F-150 4WD 2.7L Gas
- 2021–2025 Ford F-150 4WD 3.5L Gas
- 2021–2025 Ford F-150 4WD 5.0L Gas
Note:
- 3 Year Warranty
- Does not fit diesel models
- Will not fit Tremor models
- Requires frame bracket modification
- Block kits replace factory 1-1/4" block. Stock block will not be reinstalled
- Will not work with trucks equipped with CCD (Continuous Controlled Damping)
- Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear drive shaft
- (Safety Recall 21S25) Due to the recall procedure, Zone Offroad recommends to have this performed prior to installing the lift
- Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit)
- Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety
Product Specs
SKU:
ZONF91F
Brand:
Zone Offroad
