Zone Offroad 4 Inch Lift Kit with FOX Shocks and Radius Arms For 2013-2018 Ram 3500 5.7L/6.4L 4WD Gas

SKU: ZOND139F

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,358.50
$1,358.50

Free Shipping

Free ground shipping on all orders over $99
Description

Transform the stance and performance of your 2013–2018 Ram 3500 Gas 4WD with the Zone Offroad 4" Radius Arm Suspension Lift Kit. Built to deliver the perfect balance of on-road comfort and off-road capability, this system provides the clearance needed for up to 37" tires while improving handling, driveline geometry, and suspension articulation.

This complete kit includes progressive-rate coil springs, heavy-duty radius arms, steering correction components, FOX 2.0 Adventure Series shocks, and a 2" rear lift block system for a leveled stance. Engineered to maintain factory-like ride quality while increasing off-road durability — this upgrade ensures your truck performs as good as it looks.

Features:

  • Progressive-rate front coil springs improve ride comfort and suspension travel
  • HD radius arms correct caster angle and boost ground clearance and strength
  • Drop pitman arm corrects steering angles for safe, controlled handling
  • Track bar bracket repositions axle to maintain proper alignment at lift height
  • FOX 2.0 IFP shocks enhance stability and performance on- and off-road terrain
  • Extended bump stops and sway bar relocation retain proper operating angles
  • Rear lift block system levels stance and maintains hauling capability
  • Clearance for 35-37" tires for aggressive appearance and off-road function

Specifications:

  • Brand: Zone Offroad
  • Front Lift Height: 4.0 inches
  • Rear Lift Height: 2.0 inches (block kit)
  • Shock Type: FOX 2.0 Adventure Series IFP Monotube
  • Max Tire Size: Up to 37 x 12.50 (trimming may be required)
  • Drivetrain: 4WD only
  • Fuel Type: Gas (5.7L & 6.4L HEMI)
  • Front Suspension Type: Coil spring w/ radius arms
  • Rear Suspension Type: Leaf spring w/ lift block kit

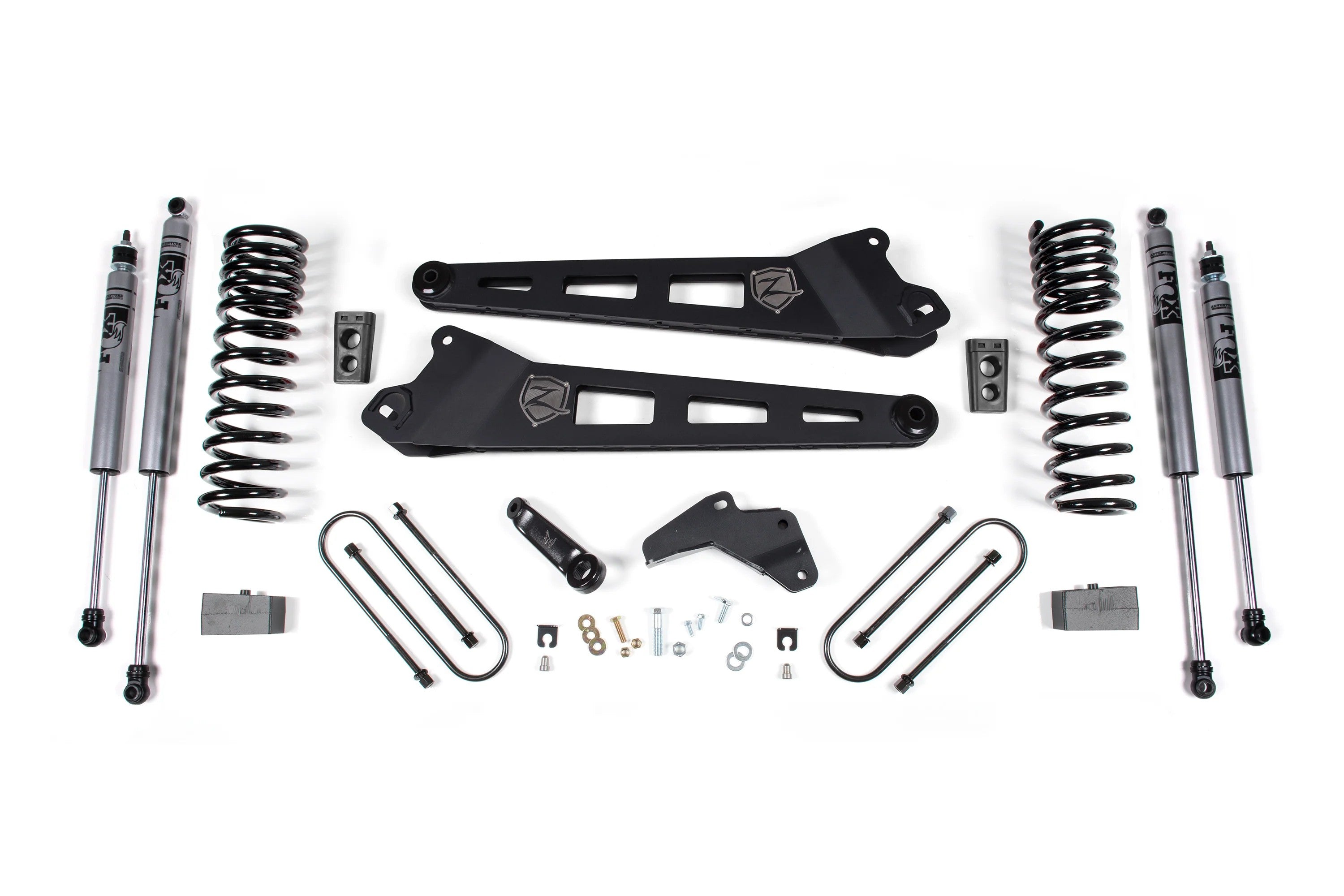

Included:

  • (2) Front Progressive-Rate Coil Springs – Steel
  • (2) Front FOX 2.0 Adventure Series IFP Shocks
  • (2) Rear FOX 2.0 Adventure Series IFP Shocks
  • (1) HD Radius Arm Drop Bracket Set – Steel
  • (1) Track Bar Relocation Bracket – Steel
  • (1) Forged Drop Pitman Arm
  • (2) 2" Rear Lift Block
  • (4) U-Bolt Kit
  • (1) Sway Bar Relocation Hardware Kit
  • (1) Hardware Kit

Fitment:

  • 2013–2018 Ram 3500 4WD 5.7L/6.4L Gas Engines Only

Note:

  • 3 Year Warranty
  • Professional alignment required after installation
  • Not compatible with factory rear air-ride suspension
  • Optional T-case indexing: 6-bolt = D5623 / 8-bolt = D5813
  • May require exhaust modification for 6.4L HEMI interference
  • Optional carrier bearing drop recommended for 2-piece driveshafts
