Zone Offroad 4 Inch Radius Arm Lift Kit with FOX Shocks For 2014-2018 Ram 2500 6.4L 4WD w/o Rear Air Suspension
SKU:
ZOND63F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,506.50
- $1,506.50
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Elevate the ride quality, stance, and performance of your 2014–2018 Ram 2500 Gas 4WD with the Zone Offroad 4” Radius Arm Lift Kit. Engineered for improved suspension geometry and increased articulation, this system gives your truck the clearance needed for up to 37” tires while maintaining stable on-road handling and precise steering feel. Whether daily driving, towing, or weekend trail riding, this lift kit provides the ride comfort, strength, and durability Ram owners expect.
Zone Offroad includes progressive-rate front coil springs, heavy-duty radius arms, a forged pitman arm, steering correction components, bump stop extensions, sway bar brackets, rear coil spacers, and FOX 2.0 Adventure Series shocks for improved damping control. Designed specifically for gas models, this complete lift system levels the stance, corrects factory geometry, and enhances capability on any terrain.
Features:
- Progressive-rate front coils improve comfort and off-road performance
- HD radius arms correct caster and maximize front ground clearance
- Forged pitman arm & track bar bracket restore steering geometry
- Extended bump stops protect components during full compression
- Brake line and sway bar brackets maintain proper operating angles
- Rear coil spacers level stance and restore rear suspension geometry
- FOX 2.0 IFP shocks improve control, damping, and heat resistance
- Engineered to clear up to 37" tires with correct wheel backspacing
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 2–2.5 inches (coil spacer system)
- Front Lift Method: Progressive-Rate Coil Springs + Radius Arms
- Rear Lift Method: Coil Spring Spacers
- Shocks Included: FOX 2.0 Adventure Series
- Shock Style: Monotube w/Internal Floating Piston
- Shock Shaft: 5/8” heat-treated chrome-plated alloy
- Steering Correction: Forged Pitman Arm + Track Bar Bracket
- Recommended Tire Size: Up to 37 x 12.50
- Vehicle Type: 4WD Gas Engines Only

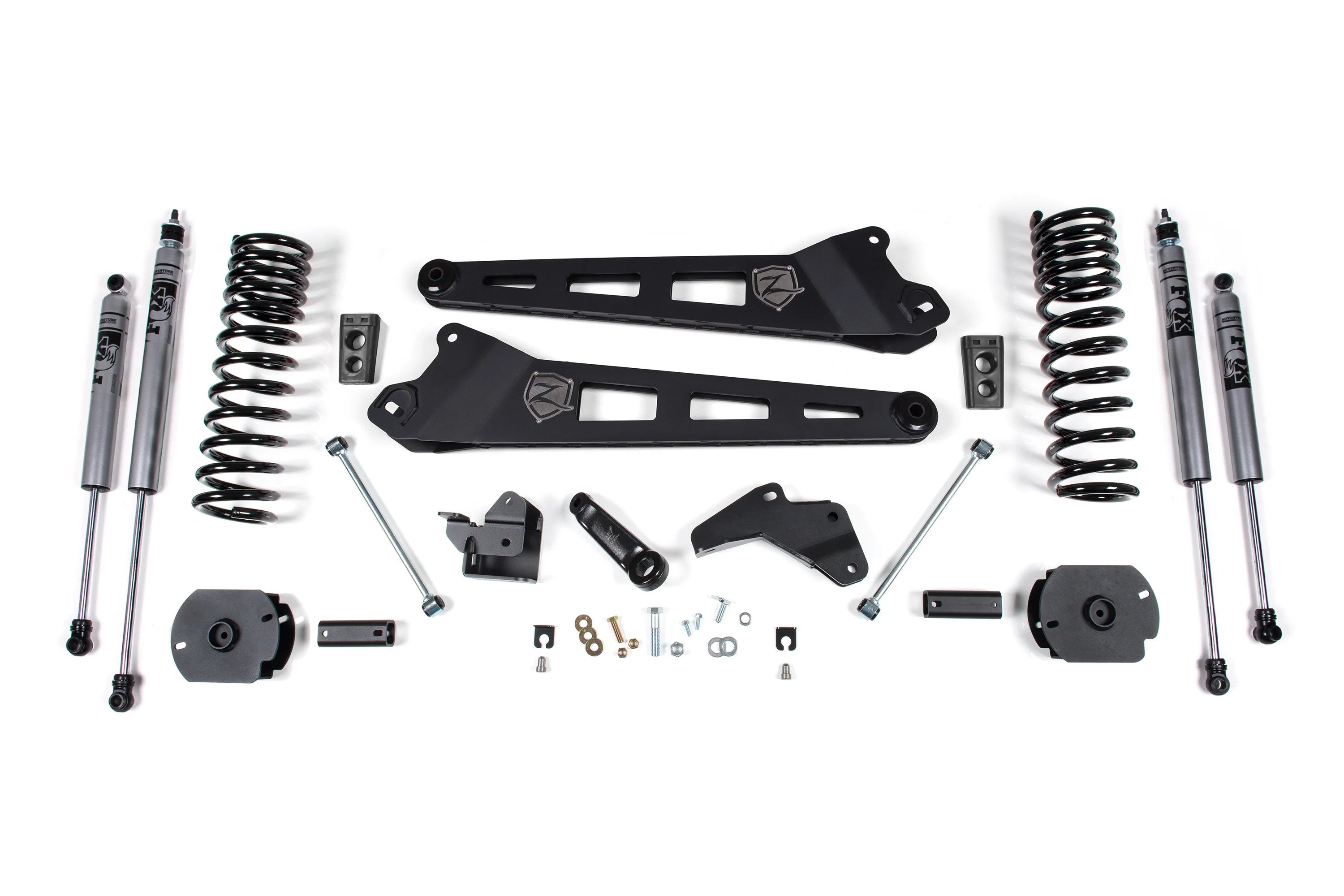

Included:
- (2) Front Progressive-Rate Coil Springs
- (2) FOX 2.0 Adventure Series Front Shocks
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Heavy-Duty Radius Arms
- (1) Forged Pitman Arm
- (1) Track Bar Relocation Bracket
- (2) Rear Coil Spring Spacers
- (2) Extended Bump Stops
- (2) Sway Bar Relocation Brackets
- (1) Brake Line Relocation Bracket
- (1) Complete Installation Hardware Kit
Fitment:
- 2014-2018 Ram 2500 6.4L Gas 4WD (without rear airbag suspension)
Notes:
- 3 Year Warranty
- Will not fit Power Wagon models.
- Does NOT work for models with factory rear airbag suspension.
- Optional t-case indexing ring kit recommended to reduce front driveline angle.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft. 5.7L Gas models may require modification
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
