Zone Offroad 4 Inch Lift Kit with FOX Shocks For 19–22 Ram 1500 5.7L 4WD with 22 Inch Factory Wheels
SKU:
ZOND100F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,708.55
- $1,708.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your 2019–2022 Ram 1500 with the 4" IFS Suspension Lift System from Zone Offroad. Designed specifically for late-model RAM trucks, this kit improves stance, increases ground clearance, and provides room for up to 35" tires. Built in the USA, it features heavy-duty crossmembers, large-bore steering knuckles (required for factory 22" wheel models), front strut spacers, and 3" rear coil springs for a balanced, level ride.
Paired with FOX 2.0 Adventure Series rear shocks from Fox Factory, this system enhances on-road handling and off-road capability. Backed by Zone’s Factory Protection Plus, you get a Limited Lifetime Warranty, ESC compatibility, and a 5-year/100,000-mile drivetrain warranty for total confidence on every terrain.
Features:
- Maintains on-road control while improving off-road performance
- Heavy-duty crossmembers and skid plates protect vital components
- New large-bore knuckles required for factory 22" wheel trucks
- Top-mount strut spacers retain factory ride quality and comfort
- FOX 2.0 shocks improve damping, cooling, and terrain control
- Engineered to provide clearance for up to 35" tire packages
- ESC-compatible steering geometry maintains safety systems
- Built in the USA with precision-fit components and hardware
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 3 inches
- Front Lift Method: Strut spacers
- Rear Lift Method: Coil springs
- Shocks Included: FOX 2.0 Adventure Series
- Drive Type: 4WD only (not AWD, not Classic)
- Wheel Requirement: Factory 22" wheel knuckle bore
- Max Tire Size: 35 inches (trimming may be required)
- Installation: Bolt-on; cutting/clearancing may apply

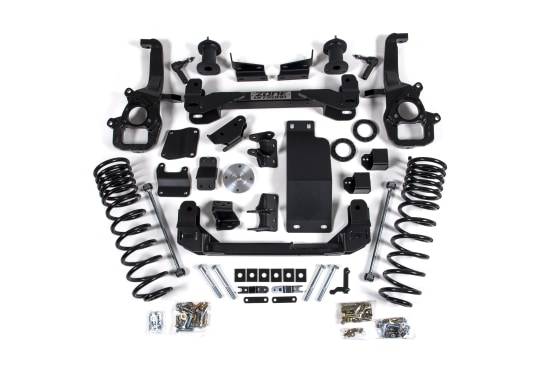

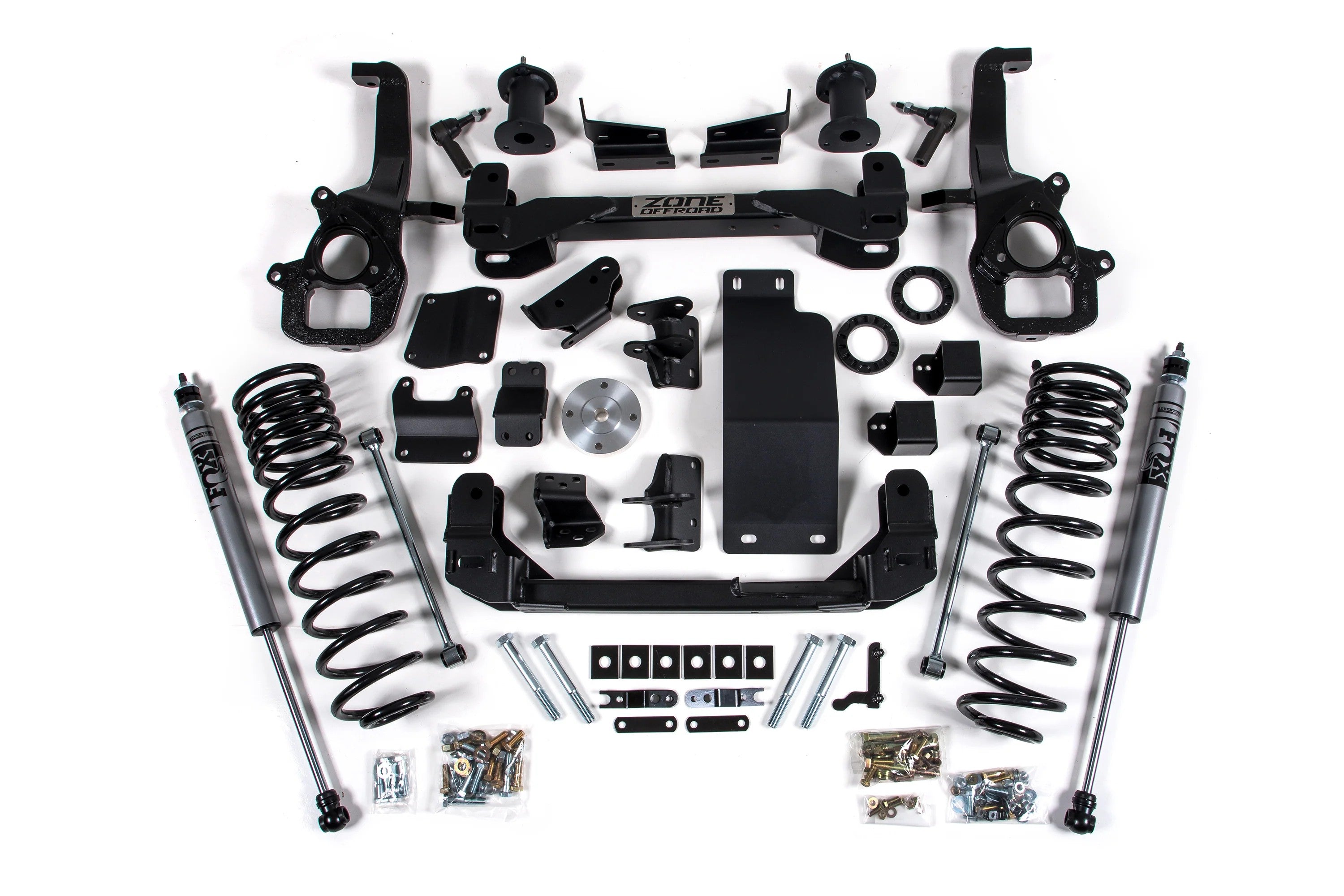

Included:
- (2) Front Strut Spacers
- (2) Steering Knuckles (Large Bore for 22" Wheel)
- (1) Front Crossmember
- (1) Rear Crossmember
- (1) Skid Plate
- (2) Rear Coil Springs (3" Lift)
- (2) FOX 2.0 Adventure Series Shocks
- (1) Differential Drop Components
- (1) Sway Bar Link Set
- (1) Hardware Kit
Fitment:
- 2019–2022 Ram 1500 5.7L V8 4WD w/22" Factory Wheels (w/o rear airbag suspension)
- 2019–2022 Ram 1500 3.6L V6 4WD w/22" Factory Wheels (w/o rear airbag suspension)
Note:
- 3 Year Warranty
- This kit will NOT work on Diesel models.
- Does NOT work for models with factory rear airbag suspension.
- Will NOT fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
- Will NOT fit models equipped with the Thermal Axle option (Reference build code DSK-P).
- IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TIRES TO ENSURE CLEARANCE.
- RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Will NOT fit Ram 1500 Rebel or Ram 1500 with Off-Road Group option. Vehicles equipped with the Off-Road Group option require the Ram 1500 Rebel 4in kit to achieve correct ride height. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the "Optional Equipment" section there will be a line item that reads "Off-Road Group" if your truck is equipped.
Product Specs
SKU:
ZOND100F
Brand:
Zone Offroad
