Zone Offroad 4 Inch Lift Kit with FOX Shocks For 2005-2015 Toyota Tacoma 4WD
SKU:
ZONT4F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,416.65
- $1,416.65
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2005–2015 Toyota Tacoma the ground clearance, stance, and capability it needs with the Zone Offroad 4” Suspension Lift Kit. Designed for improved off-road performance and increased wheel travel, this system includes heavy-duty crossmembers, ductile iron steering knuckles, and top-mounted strut spacers to maintain proper steering geometry, ESC compatibility, and factory ride quality while lifting the front end. Built to handle up to 33” tires, this lift kit delivers the strength and reliability Toyota owners expect.
A full-width belly skid plate protects critical components during off-road use while rear lift blocks and extended U-bolts establish a level stance. Bump stop, sway bar, and brake line relocation brackets correct the suspension angles for safe, consistent operation. Paired with FOX 2.0 Adventure Series rear shocks, the system provides enhanced damping, improved body control, and confident handling on and off the trail.
Features:
- High-strength crossmembers correct lower control arm positions
- Ductile iron knuckles maintain precise steering geometry and ESC
- Top-mounted strut spacers lift front end without spring disassembly
- Full-width belly skid plate adds essential underbody protection
- Rear lift blocks and U-bolts provide a strong, level rear stance
- Brake line, sway bar, and bump stop brackets correct angles
- FOX 2.0 IFP shocks improve ride, control, and off-road handling
- Clears up to 33" tires for an aggressive, trail-ready appearance
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 4 inches
- Rear Lift Height: 3 inches
- Lift Type: Crossmember + Strut Spacer Front / Block Rear
- Front Lift Method: High-strength crossmembers and strut spacers
- Rear Lift Method: Cast lift block and extended U-bolt kit
- Shocks Included: FOX 2.0 Adventure Series (Rear)
- Shock Type: IFP monotube, 2" body, 5/8" chrome-plated shaft
- Tire Fitment: Up to 33 x 12.50 (trimming required)
- Wheel Requirement: 18" or larger aftermarket wheels required

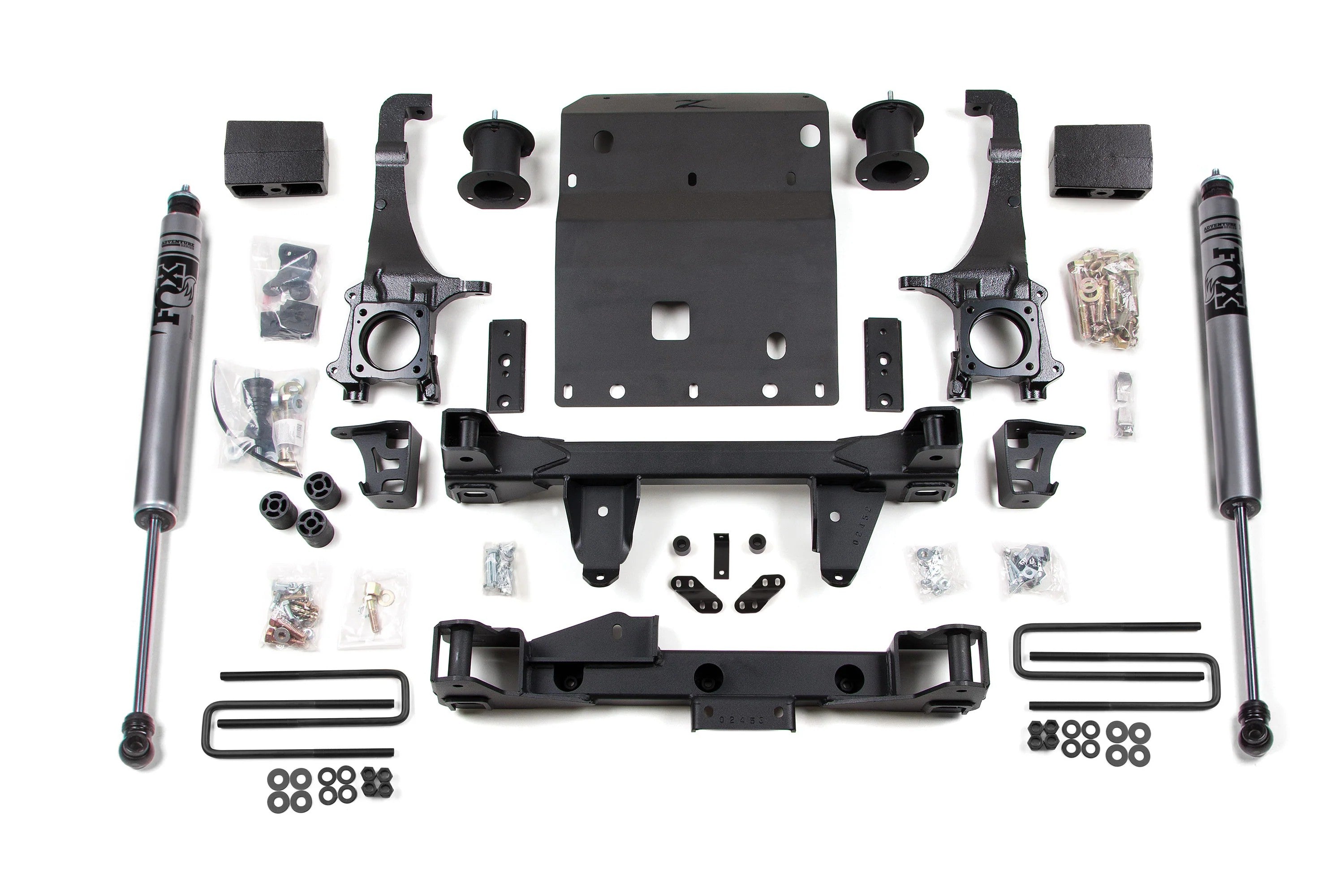

Included:
- (2) High-Strength Front Crossmembers
- (2) Ductile Iron Steering Knuckles
- (2) Top-Mounted Strut Spacers
- (1) Full-Width Belly Skid Plate
- (2) Rear Lift Blocks cast
- (4) Extended Rear U-Bolts
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Brake Line Relocation Bracket Set
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Relocation Kit
- (1) Complete Hardware Kit
Fitment:
- 2005-2015 Toyota Tacoma 4WD
Notes:
- 3 Year Warranty
- Will NOT work on TRD Pro Models
- System will also work on RWD PreRunner models
Product Specs
SKU:
ZONT4F
Brand:
Zone Offroad
