Zone Offroad 4 Inch Lift Kit | Ford F150 (2014) 4WD

SKU: ZONF41

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,257.75
$1,257.75

Free Shipping

Free ground shipping on all orders over $100

Take your F150 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features:

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles



Fitment:

  • 2014 Ford F150 4Wd

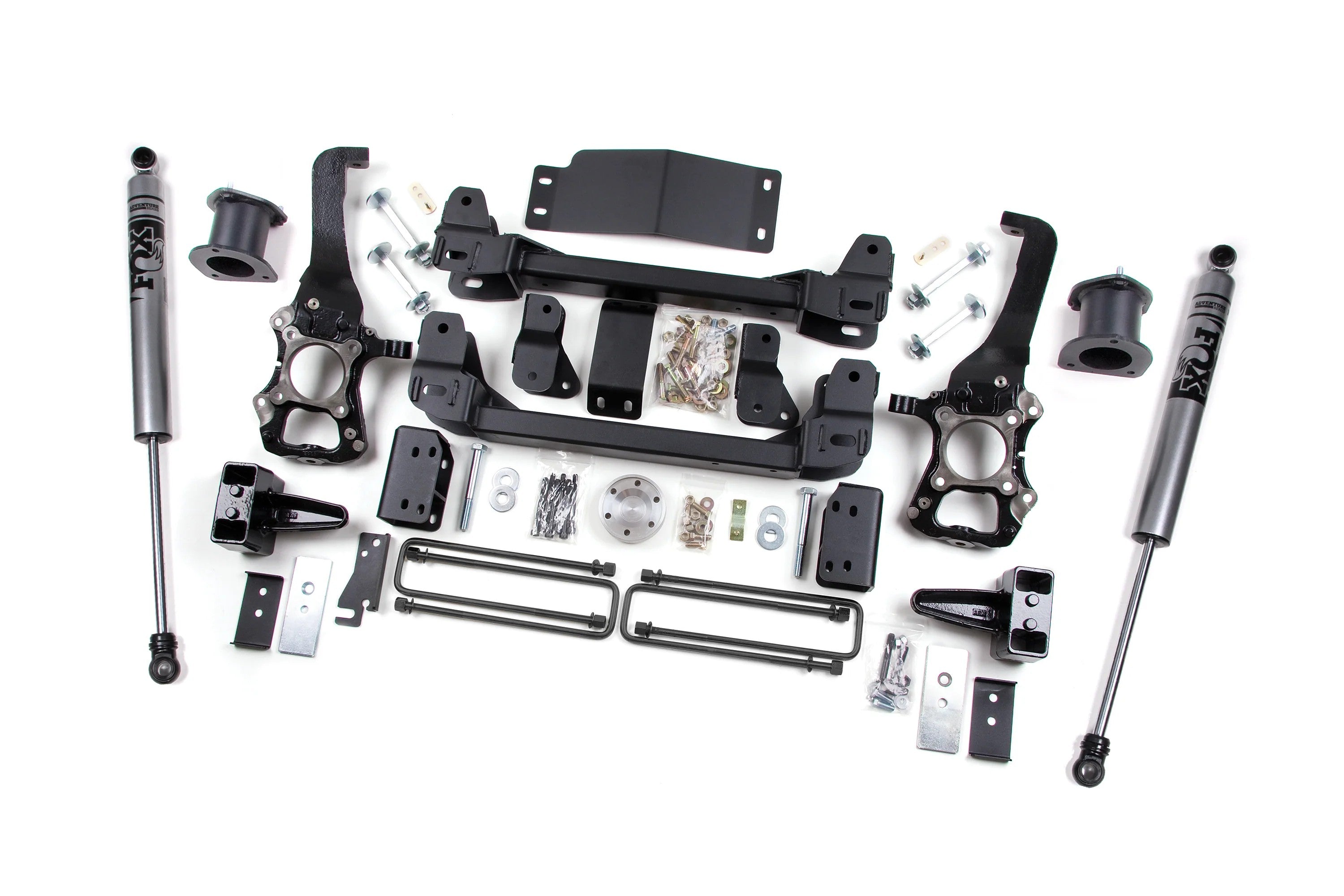

Included:

  • All Necessary Mounting / Installation Hardware
  • Differential Drop Brackets
  • Frame Crossmembers
  • Rear Lift Block & U-Bolt Kit
  • Skid Plate
  • Steering Knuckles
  • Strut Spacers



Notes:

  • AWD models will require front driveshaft modification.
  • If using 18x9 wheels with 5.5" backspace, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Vehicles equipped with factory power steps will require E-Brake Relocation Bracket F5608.
  • Will not work with 17" wheels.

Product Specs

SKU:
ZONF41
Brand:
Zone Offroad
