Zone Offroad 4 Inch Lift Kit | Ford F150 (15-20) 4WD

SKU: ZONF47

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,308.70
$1,308.70

Free Shipping

Free ground shipping on all orders over $100

Take your F150 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Features:

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles



Fitment:

  • 2015-2020 Ford F150 4Wd

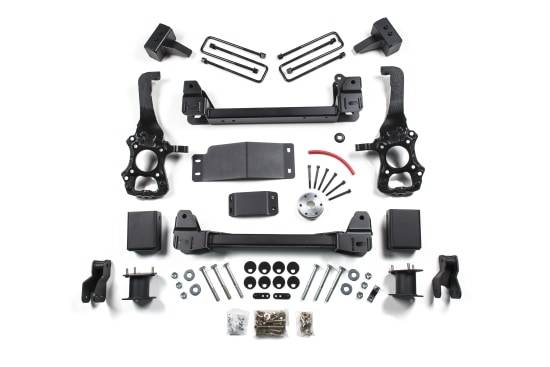

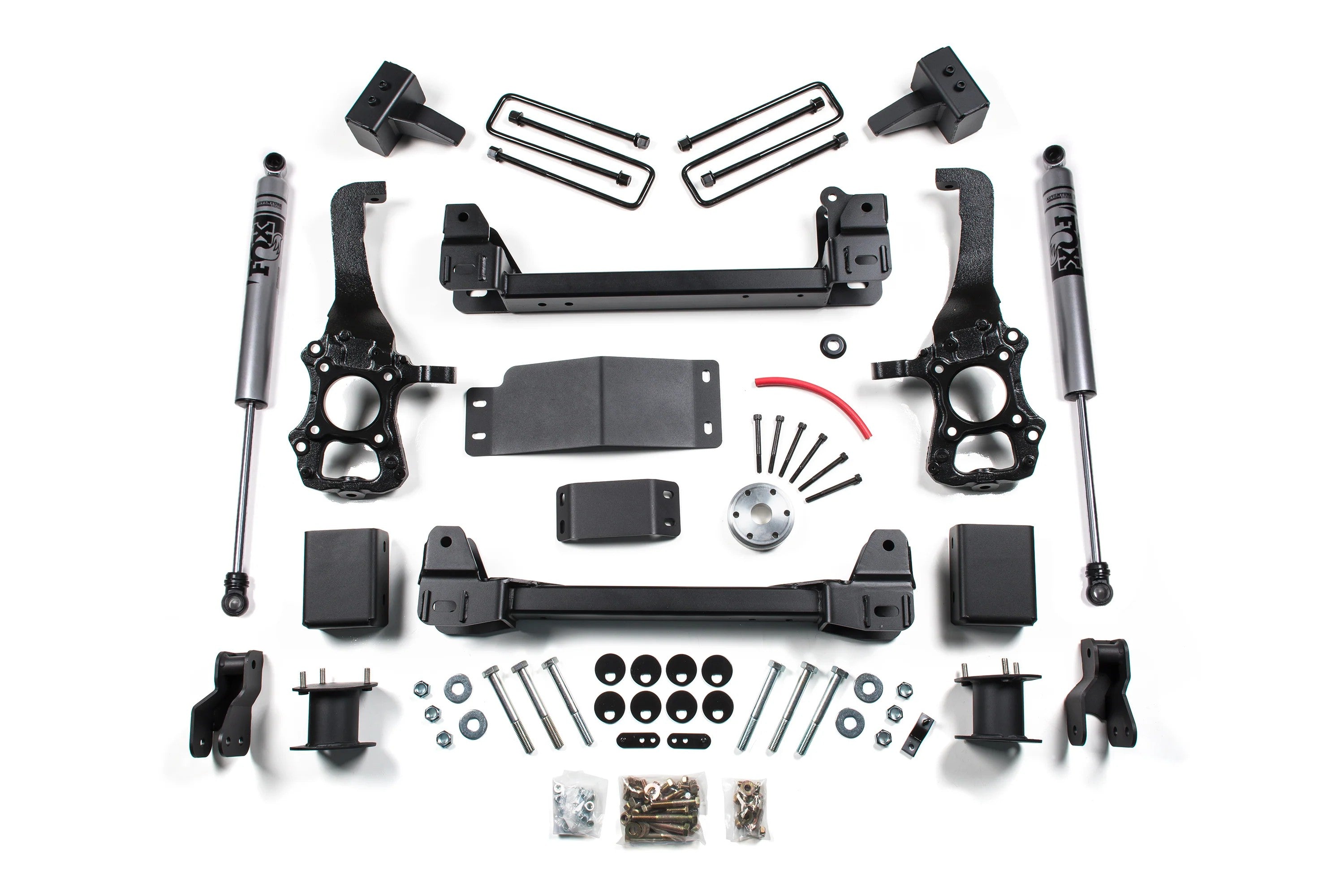

Included:

  • Crossmembers
  • Differential Drop Brackets
  • Driveshaft Spacer
  • Rear Lift Block & U-Bolt Kit
  • Skid Plate
  • Steering Knuckles
  • Strut Spacers
  • Sway Bar Relocation Brackets



Notes:

  • 18" wheels should be test fit to ensure proper tie rod end clearance. Wheel profiles can vary between manufacturers.
  • Depending on wheel selection, minor trimming may be required to fit tire.
  • Models equipped with Auto 4wd may require front driveshaft replacement.
  • Requires frame bracket modification.
  • Some 2015 2016 models are equipped with an Auto 4wd feature as indicated by a '4A' option on the transfer case shift selection knob. Those models must use the equivalent 2017-18 model lift system.
  • Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

Product Specs

SKU:
ZONF47
Brand:
Zone Offroad
