Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD
Zone Offroad

Zone Offroad 5.5 Inch Radius Arm Lift Kit with FOX Shocks For 2019-2024 Ram 3500 6.4L 4WD

SKU: ZOND122F

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,810.45
$1,810.45

Free Shipping

Free ground shipping on all orders over $99
Description

Upgrade your 2019–2024 Ram 3500 6.4L Gas 4WD with the Zone Offroad 5.5” Radius Arm Suspension Lift Kit, engineered to increase ground clearance, correct suspension geometry, and deliver a stronger, more level stance. Designed specifically for gas trucks equipped with factory overload springs, this system provides superior ride quality, unmatched durability, and room for up to 37" tires—perfect for towing, daily driving, and off-road use.

This premium lift system includes progressive-rate coil springs, massive 1/4" steel radius arms, steering correction components, a transmission crossmember, and a transfer case indexing ring to optimize driveline angles. The included FOX 2.0 Adventure Series shocks offer outstanding damping control, fade resistance, and improved off-road stability. Zone Offroad gives your Ram HD the capability, strength, and confidence it deserves.

Features:

  • Progressive-rate front coils improve control on any terrain
  • 1/4" steel radius arms add strength and correct caster angle
  • HD track bar bracket re-centers axle after lifting
  • Forged pitman arm properly corrects steering geometry
  • FOX 2.0 shocks deliver smooth on-road and off-road damping
  • HD crossmember and indexing ring fix driveline angles
  • Rear lift system levels stance and maintains load capacity
  • Clears up to 37-inch tires for aggressive stance and ability

Specifications:

  • Brand: Zone Offroad
  • Front Lift Height: 5.5 inches
  • Rear Lift Height: 5 inches
  • Front Lift Method: Progressive Coil Springs
  • Rear Lift Method: Lift Blocks & U-Bolts
  • Shock Type: FOX 2.0 Adventure Series IFP
  • Radius Arms: 1/4" Steel, Laser-Cut, Internally Gusseted
  • Track Bar Bracket: Heavy-Duty Steel
  • Driveline Correction: Transmission Crossmember + T-Case Indexing Ring
  • Max Tire Size: 37" (may require trimming)

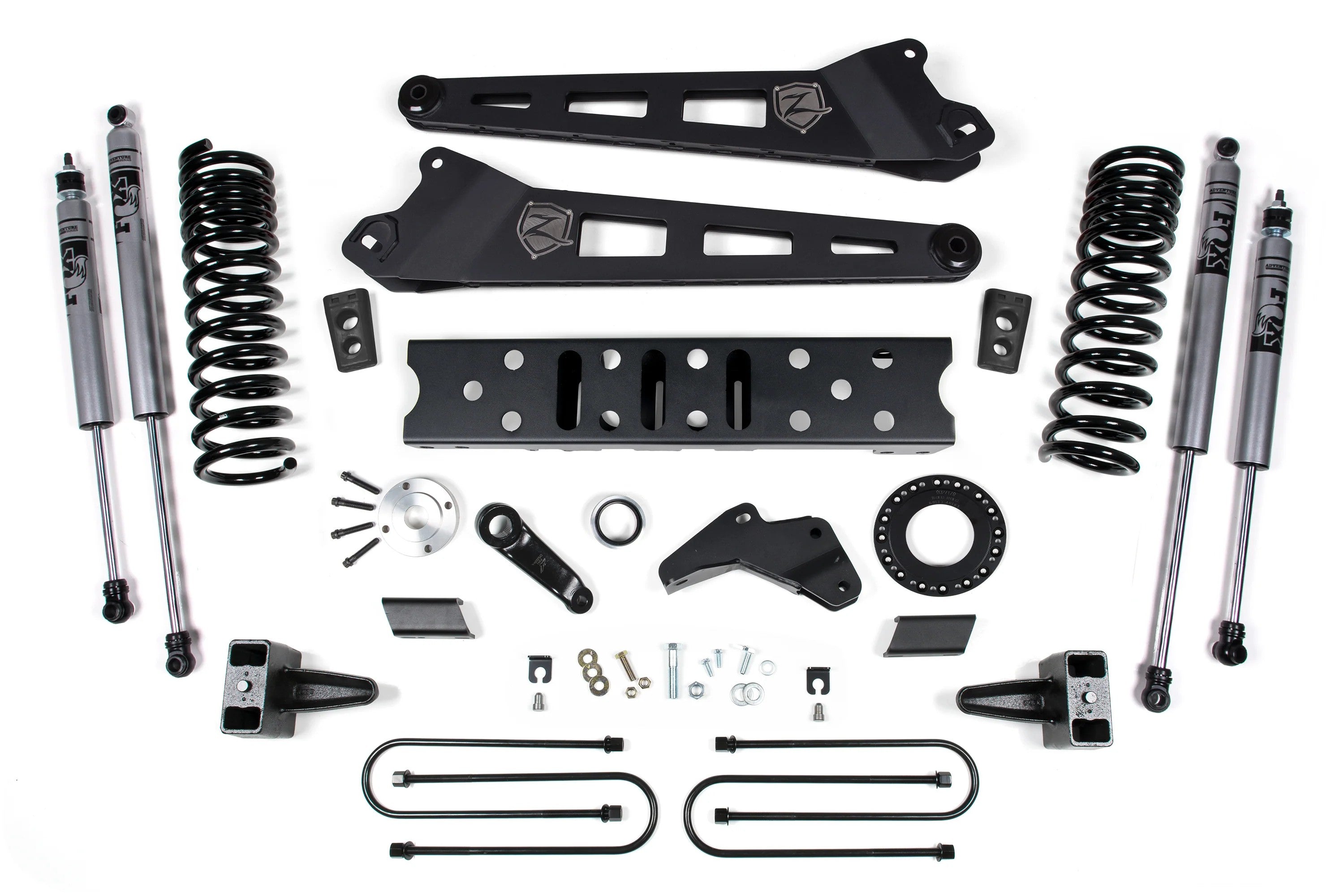

Included:

  • (2) Front Coil Springs
  • (2) Radius Arms
  • (2) FOX 2.0 Front Shocks
  • (2) FOX 2.0 Rear Shocks
  • (1) Forged Drop Pitman Arm
  • (1) HD Transmission Crossmember
  • (1) Transfer Case Indexing Ring
  • (1) Front Track Bar Relocation Bracket
  • (2) Rear Lift Blocks
  • (4) Rear U-Bolts
  • (1) Front Sway Bar Correction Bracket Set
  • (1) Brake Line Kit
  • (1) Relocation Kit
  • (1) Hardware Pack

Fitment:

  • 2019–2024 Ram 3500 6.4L Gas 4WD (w/ Factory Overload Springs)

Note:

  • 3 Year Warranty
  • Gas models only; with Factory Overload Springs
  • Will NOT fit Power Wagon or air-ride equipped models
  • Exhaust modification required to clear front driveshaft
  • Trucks with 2-piece rear driveshaft require shim kit D5406
  • Professional installation and alignment strongly recommended
