Zone Offroad 5.5 Inch Lift Kit with FOX Shocks For 2013-2018 Ram 3500 6.4L 4WD Gas
SKU:
ZOND66F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,192.60
- $1,192.60
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your heavy-duty truck to the next level with the Zone Offroad 5.5-inch Standard Lift Kit featuring FOX shocks for the 2013–2018 Ram 3500 equipped with the 6.4L gas engine and 4WD. Designed to deliver aggressive stance, increased ground clearance, and the ability to run up to 37-inch tires, this system improves both the appearance and off-road capability of your Ram.
Engineered for durability and proper suspension geometry, this kit includes progressive rate front coil springs, radius arm drop brackets, and steering correction components to maintain proper alignment and predictable handling. Paired with FOX performance shocks, this lift kit delivers improved damping control and ride quality both on and off the road.
Features:
- Progressive rate coil springs improve ride quality and suspension travel
- FOX performance shocks improve damping control and ride stability
- Radius arm drop brackets correct caster and suspension geometry
- Forged pitman arm improves steering angles on lifted trucks
- Track bar relocation bracket re-centers the front axle properly
- Extended bump stops help protect suspension components during travel
- Rear lift blocks and U-bolts lift and level the truck stance
- Allows clearance for up to 37-inch tires with proper wheel setup
Specifications:
- Brand: Zone Offroad
- Product Type: Suspension Lift Kit
- Lift Height: 5.5 Inches
- Front Lift Method: Progressive Rate Coil Springs
- Rear Lift Method: Lift Blocks and U-Bolts
- Shock Type: FOX Performance Series
- Drive Type Compatibility: 4WD
- Recommended Tire Size: Up to 37 Inches
- Construction Material: High Strength Steel
- Finish: Powder Coated Black

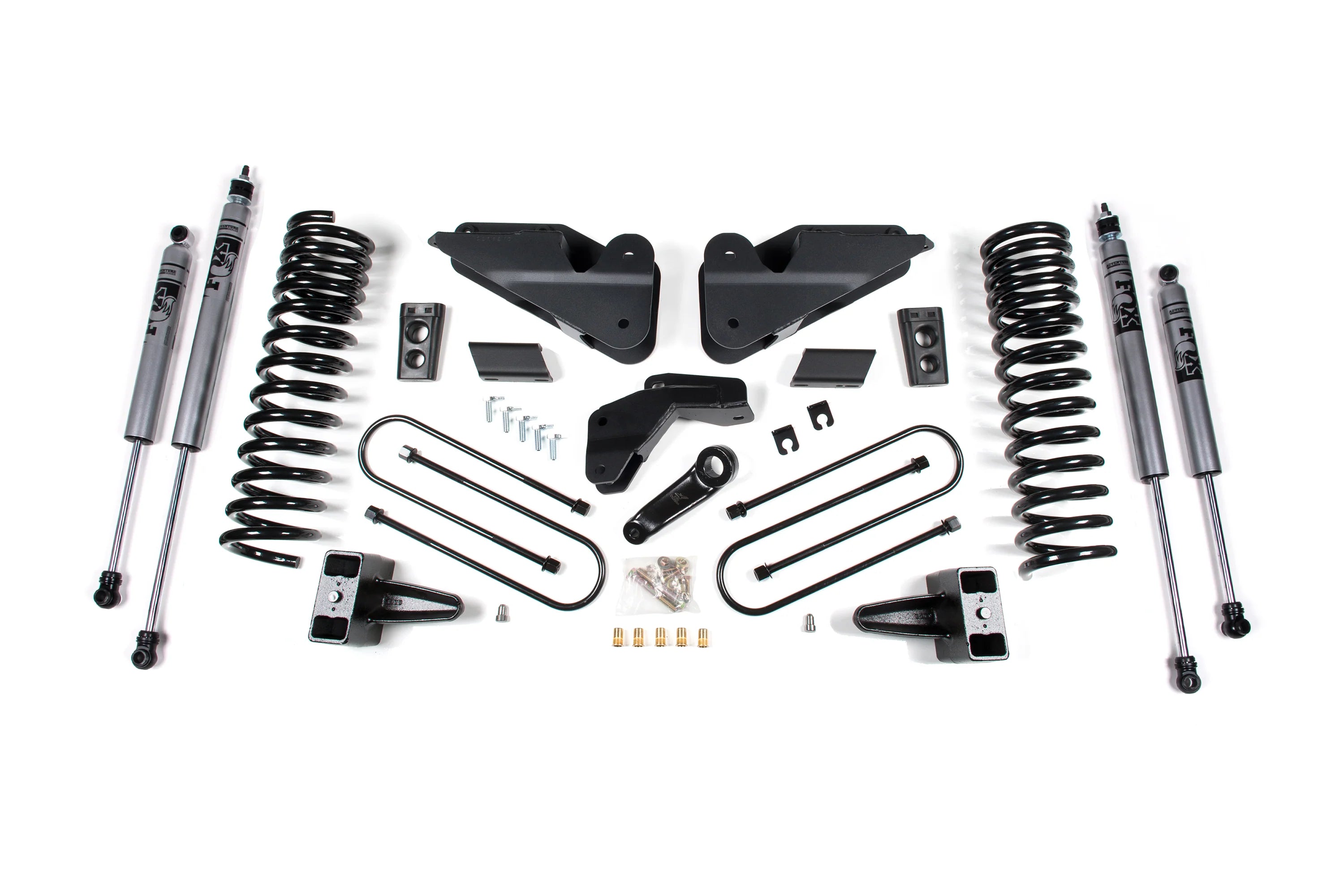

Included:
- (2) Front Coil Springs
- (4) FOX Performance Shocks
- (2) Radius Arm Drop Brackets
- (1) Dropped Pitman Arm
- (1) Track Bar Relocation Bracket
- (1) Rear Lift Block & U-Bolt Kit
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Set
- (1) Installation Hardware Kit
Fitment:
- 2013-2018 Ram 3500 6.4L Gas 4WD
Notes:
- 3 Year Warranty
- Fits trucks equipped with the 6.4L gas engines.
- Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6 bolt transfer case use part # D5623. Models with an 8 bolt transfer case use part #D5813.
- Fitment: Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification
Product Specs
SKU:
ZOND66F
Brand:
Zone Offroad
