Zone Offroad 5.5 Inch Lift Kit | Chevy Colorado & GMC Canyon (15-22) 4WD

SKU: ZONC39

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,257.70
$1,257.70

Free Shipping

Free ground shipping on all orders over $100

To properly lift the Colorado/Canyon suspension 5.5", we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5" of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4" of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.
  • Rear lift block and longer u-bolts for easy installation and level stance.



Fitment:

  • 2015-2022 Chevy Colorado & Gmc Canyon

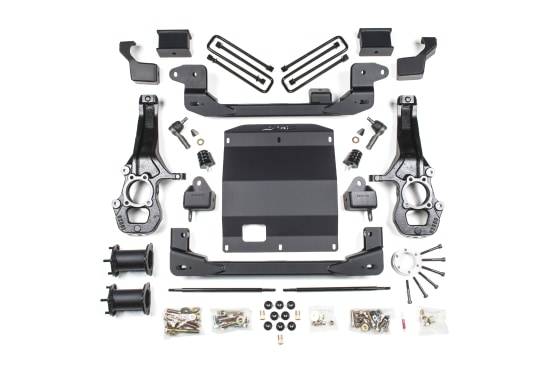

Included:

  • Differential Relocation Brackets
  • Frame Crossmembers - Front and Rear
  • Strut Spacer - Front
  • Rear Lift Block & U-Bolt Kit
  • Sway Bar Links - Front
  • Skid Plate
  • Steering Knuckles



Notes:

  • Factory wheels cannot be reinstalled.
  • Fits Gas and Diesel models.
  • Inner fender trimming may be required.
  • The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel maybe experienced.
  • Will not fit ZR2 Models.

Product Specs

SKU:
ZONC39
Brand:
Zone Offroad
