Zone Offroad 5 Inch Lift Kit with FOX Shocks For 2000-2002 Dodge Ram 2500/3500 5.9L 4WD
SKU:
ZOND47F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,156.65
- $1,156.65
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Go big and go anywhere with the Zone Offroad 5" Lift Kit for the 2000–2002 Dodge/Ram 2500 and 3500 4WD trucks. This full suspension system delivers the clearance required for up to 35" tires, while improving strength, articulation, and overall suspension geometry. Designed as a 100% bolt-on system, this kit provides a dramatic increase in height while retaining predictable handling and a comfortable ride.
Heavy-duty upper and lower control arms correct caster and increase durability, while the front track bar relocation bracket properly centers the axle. Steering correction components ensure smooth operation, and bump stop extensions protect components during up-travel. Paired with FOX 2.0 Adventure Series Shocks, this kit offers improved damping, heat resistance, and stability for both road and off-road performance.
Features:
- 100% bolt-on system for quick installation and factory-style reliability
- Heavy-duty control arms increase strength and correct caster angles
- Front track bar bracket re-centers axle after lifting
- Dropped pitman arm restores proper steering alignment
- Rear block + add-a-leaf setup provides lift and towing stability
- Bump stop extensions protect suspension at full compression
- Sway bar relocation improves articulation and link geometry
- Clears up to 35 inch tires with proper wheel and backspacing
Specifications:
- Brand: Zone Offroad
- Part Number: ZOND47F
- Front Lift Height: 5 inches
- Rear Lift Height: 5 inches
- Front Lift Method: Coil springs
- Rear Lift Method: Block + add-a-leaf
- Shocks Included: FOX 2.0 Adventure Series IFP
- Shock Body: 2.0” steel body, clear anodized finish
- Shock Shaft: 5/8” hard chrome heat-treated steel
- Max Tire Size: Up to 35 x 12.50
- Recommended Wheels: 16x8, 17x9, 18x9 (proper backspacing required)
- Drive Type: 4WD
- Application: 2000–2002 Dodge/Ram 2500 & 3500

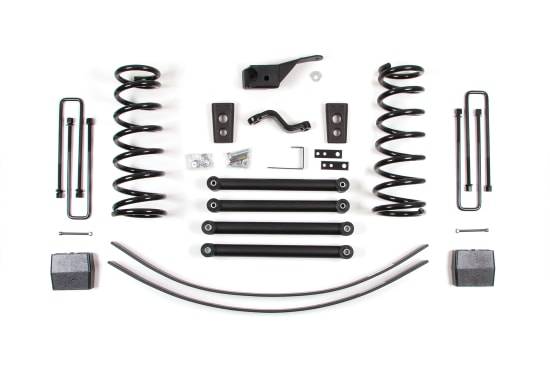

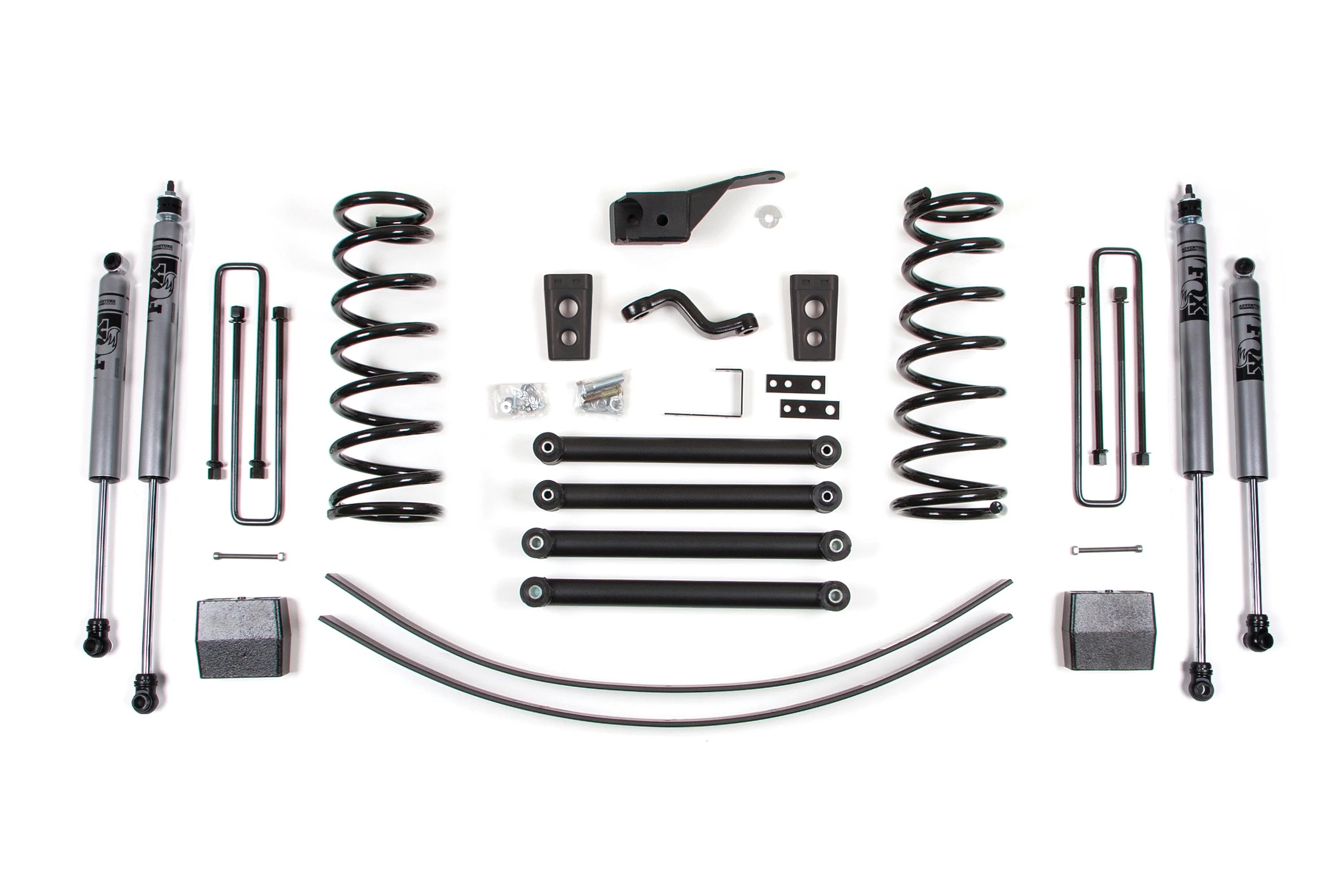

Included:
- (2) Front Coil Springs
- (2) Upper Control Arms
- (2) Lower Control Arms
- (1) Track Bar Relocation Bracket
- (1) Dropped Pitman Arm
- (1) Add-A-Leaf Kit
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (2) FOX 2.0 Adventure Series Front Shocks
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Sway Bar Relocation Bracket Kit
- (1) Bump Stop Extension Kit
- (1) Hardware Kit
Fitment:
- 2000–2002 Dodge Ram 2500 5.9L Cummins Diesel 4WD
- 2000–2002 Dodge Ram 2500 5.9L Magnum Gas 4WD
- 2000–2002 Dodge Ram 3500 5.9L Cummins Diesel 4WD
- 2000–2002 Dodge Ram 3500 5.9L Magnum Gas 4WD
Notes:
- 3 Year Warranty
- If truck is equipped with a proportioning valve a relocation bracket kit is required.
- Dodge Rams were manufactured with two different front sway bar link setups. Some were mounted ABOVE the axle bracket and some BELOW. If your mode's sway bar links are above the axle bracket, a sway bar link kit is required. Add in configuration / checkout.
- If your vehicle is equipped with a top mounted overload/helper spring, 4 longer U-bolts may be required.
- Factory block is replaced with 5" block and add-a-leaf combo to obtain a level stance.
- Factory Rear Sway Bar? If your vehicle is equipped with a factory rear sway bar, a rear sway bar link kit is recommended
- Factory wheels fit when paired with factory / original equipment tire size.
- Will NOT fit models built before February 9, 1994 due to track bar stud size.
- Steering Stabilizer Required! Due to the factory drag link flip when installing this kit the factory steering stabilizer cannot be reinstalled.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
