Zone Offroad 5 Inch Lift Kit with FOX Shocks For 2007-2015 Toyota Tundra
SKU:
ZONT1F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,591.65
- $1,591.65
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Unlock the full capability of your 2007–2015 Toyota Tundra with the Zone Offroad 5” Suspension Lift Kit, engineered for durability, strength, and superior off-road performance. This lift system combines heavy-duty boxed crossmembers, ductile iron knuckles, lower strut extensions, and weld-in chassis plates to increase ground clearance while maintaining proper steering geometry and ESC compatibility. Designed to clear up to 35” tires with trimming, this kit gives your Tundra the stance and capability it deserves while preserving a confident factory-like ride.
Rear lift blocks and U-bolts establish a level stance while sway bar, brake line, and bump stop relocation brackets ensure proper operating angles throughout suspension travel. Paired with FOX 2.0 Adventure Series shocks, the system improves stability, damping control, and off-road handling. Whether you daily-drive or hit trails, this lift kit transforms your Tundra into a more capable, trail-ready machine.
Features:
- High-strength crossmembers correct arm position and suspension geometry
- Ductile iron knuckles maintain steering accuracy and ESC functionality
- Lower strut extensions provide lift while simplifying installation
- Weld-in chassis plates increase frame rigidity and long-term strength
- Rear lift blocks and U-bolts deliver a level, lifted rear stance
- Brake line, sway bar, and bump stop brackets correct suspension angles
- FOX 2.0 IFP shocks enhance damping control on and off the pavement
- Clears up to 35" tires for aggressive stance and off-road capability
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 5 inches
- Rear Lift Height: 3 inches
- Lift Type: Crossmember + Strut Extension Front / Block Rear
- Front Lift Method: High-strength crossmembers and strut extensions
- Rear Lift Method: Cast lift block and extended U-bolt kit
- Shocks Included: FOX 2.0 Adventure Series Rear Shocks
- Shock Type: IFP monotube, 2" steel body, 5/8" chrome shaft
- Wheel Fitment: 18"+ aftermarket or 20" OEM with max 6.25" backspacing
- Tire Fitment: Up to 35 x 12.50 (trimming required)

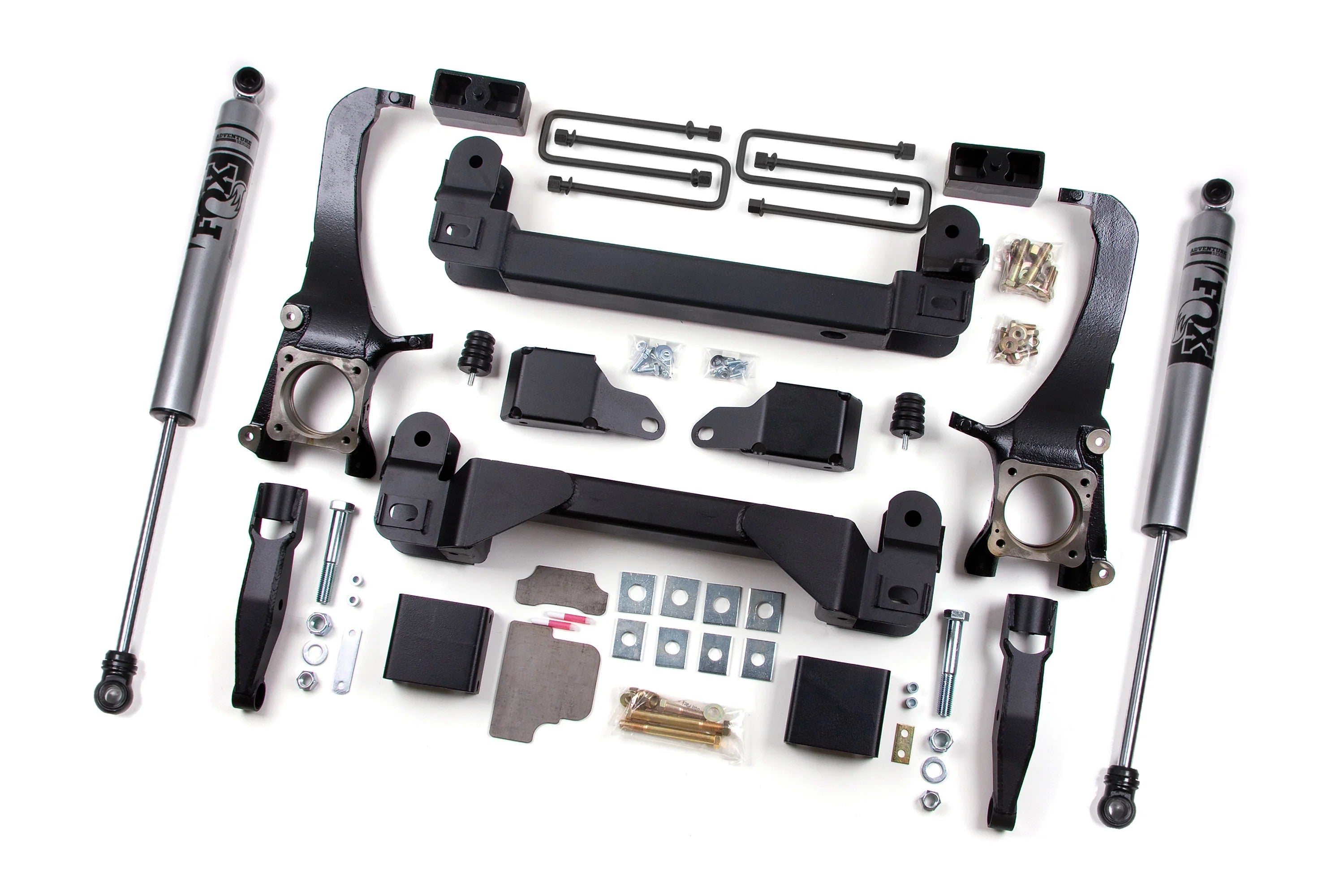

Included:
- (2) Heavy-Duty Front Crossmembers
- (2) Ductile Iron Steering Knuckles
- (2) Lower Strut Extensions
- (1) Weld-In Chassis Plate Set
- (2) Rear Lift Blocks cast
- (4) Extended Rear U-Bolts
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Brake Line Relocation Bracket Set
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Relocation Kit
- (1) Complete Hardware Kit
Fitment:
- 2007-2015 Toyota Tundra 4WD
Notes:
- 3 Year Warranty
- Will NOT work on 2015 TRD Pro Models
- RWD models may require driveline modification
- Factory 20" wheels with a maximum 6.25" backspacing can be used
- Will work with Bilstein (yellow) factory front struts on 2014-2015 models
- Factory 18" wheels cannot be reinstalled with this kit due to steering interference
- Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming
- Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration
Product Specs
SKU:
ZONT1F
Brand:
Zone Offroad
