Zone Offroad 6.5 inch Lift Kit with FOX Shocks For 2013–2018 Ram 3500 6.7L Diesel 4WD
SKU:
ZOND52F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,218.60
- $1,218.60
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade your heavy-duty truck with the Zone Offroad 6.5-inch Standard Lift Kit featuring FOX shocks for the 2013–2018 Ram 3500 equipped with the 6.7L Cummins diesel engine and 4WD. This premium suspension system provides increased ground clearance, aggressive stance, and the ability to run up to 37-inch tires while maintaining excellent ride quality and suspension performance.
Designed for durability and proper suspension geometry, this kit includes progressive rate front coil springs, radius arm relocation brackets, and steering correction components to maintain proper alignment and handling. The addition of FOX performance shocks delivers superior damping control both on and off the road, making this kit ideal for daily driving, towing, and off-road use.
Features:
- Progressive rate coil springs improve ride quality and suspension travel
- FOX performance shocks provide improved damping and control
- Radius arm drop brackets correct caster and suspension geometry
- Forged pitman arm improves steering angles on lifted trucks
- Track bar relocation bracket recenters front axle for proper alignment
- Extended bump stops protect suspension components during travel
- Sway bar relocation brackets maintain correct operating angles
- Rear lift blocks and U-bolts level stance and improve clearance
Specifications:
- Brand: Zone Offroad
- Product Type: Standard Suspension Lift Kit
- Lift Height: 6.5 Inches
- Front Lift Method: Progressive Rate Coil Springs
- Rear Lift Method: Lift Blocks and U-Bolts
- Shock Type: FOX Performance Series
- Drive Type Compatibility: 4WD
- Maximum Tire Size: 37 Inches
- Construction Material: High Strength Steel
- Finish: Powder Coated Black

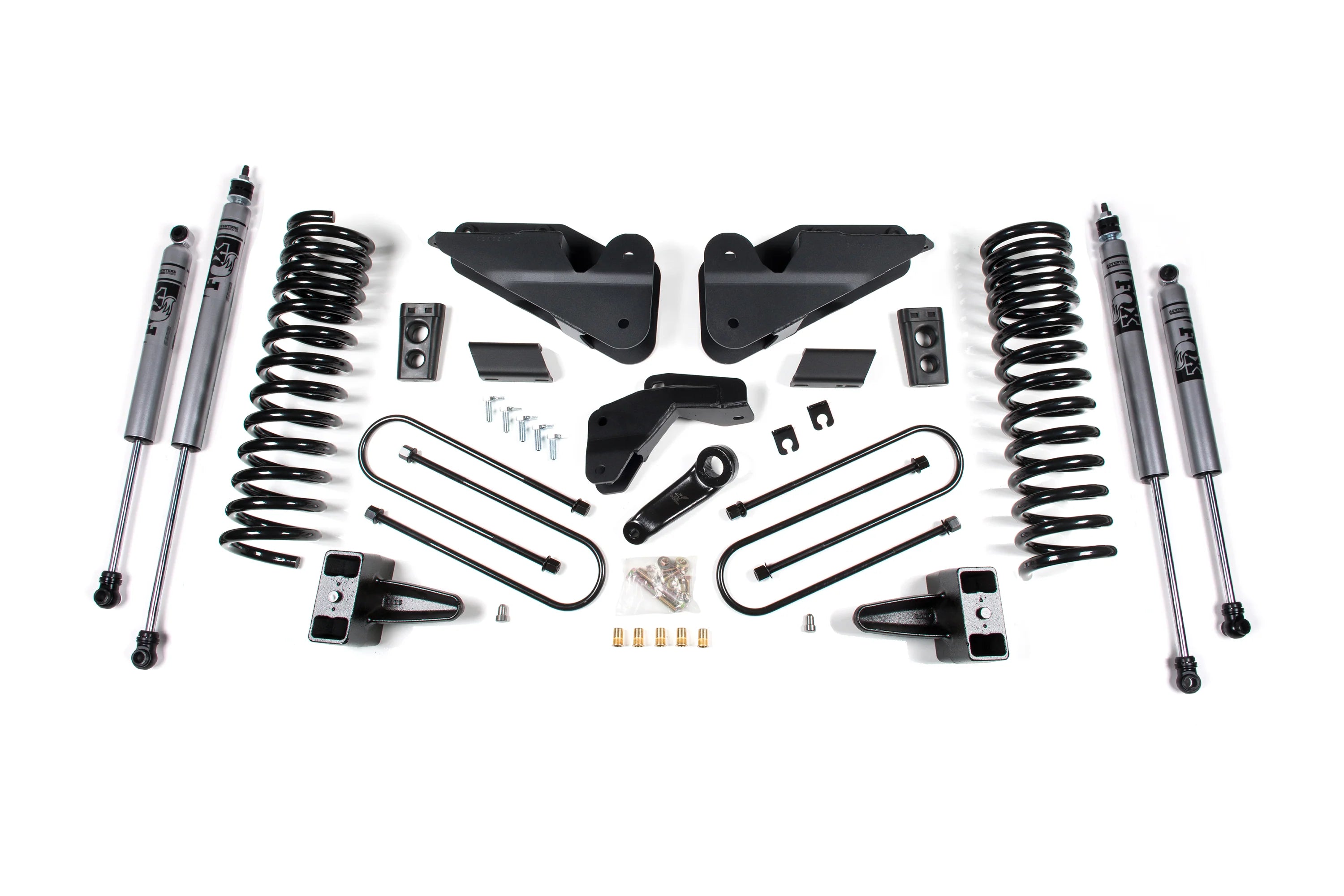

Included:
- (2) Front Coil Springs
- (4) FOX Performance Shocks
- (2) Radius Arm Drop Brackets
- (1) Track Bar Relocation Bracket
- (1) Dropped Pitman Arm
- (1) Rear Lift Block & U-Bolt Kit
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Set
- (1) Installation Hardware Kit
Fitment:
- 2013–2018 Ram 3500 6.7L Cummins Diesel 4WD
Notes:
- 3 Year Warranty
- Check Your Rear Springs: If your vehicle is equipped with a 4" rear block and top mounted overload or helper spring, 4 longer U-bolts may be required.
- Driveline: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
- Factory wheels fit when paired with factory / original equipment tire size.
- Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Lift Block Selection: This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Mod's Required: Exhaust modification may be required to clear the front driveshaft once lifted. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
