Zone Offroad 6 Inch Lift Kit/4 Inch Rear Lift with FOX Shocks For 2021-2025 Ford F-150 4WD
SKU:
ZONF98F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,545.60
- $1,545.60
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade the stance, clearance, and capability of your 2021–2025 Ford F-150 4WD with the Zone Offroad 6” Suspension Lift Kit with FOX 2.0 Adventure Series shocks. Engineered to deliver aggressive lift while maintaining factory ride quality, this system corrects suspension, steering, and driveline geometry for confident on-road handling and off-road performance. The 6” front lift combined with a 4” rear block delivers a leveled to slightly tail-low stance with clearance for up to 35–37” tires.
Zone Offroad equips this kit with high-strength crossmembers, redesigned steering knuckles, front strut spacers, differential drop brackets, and FOX 2.0 Adventure Series rear shocks for improved damping and control. Built to Factory Protection Plus standards, this lift retains ESC compatibility and supports modern F-150 platforms while delivering durability, stability, and aggressive style.
Features:
- Optimized design improves ground clearance and off-road protection
- Corrects suspension, steering, and driveline geometry for stability
- Redesigned knuckles maintain ESC system compatibility
- Front strut spacers retain factory ride quality
- 4" rear lift block provides level to tail-low stance
- FOX 2.0 shocks deliver fade-free off-road damping performance
- High-strength crossmembers add durability and strength
- Clears 35–37" tires with proper wheel and tire setup
Specifications:
- Brand: Zone Offroad
- Vehicle Drive Type: 4WD
- Fuel Type: Gas
- Front Lift Height: 6 inches
- Rear Lift Height: 4 inches
- Front Lift Method: Strut Spacer
- Rear Lift Method: Lift Block & U-Bolts
- Rear Shock Type: FOX 2.0 Adventure Series IFP
- Max Tire Size: 35–37 inches (trimming may be required)
- ESC Compatibility: FMVSS No.126 Compliant

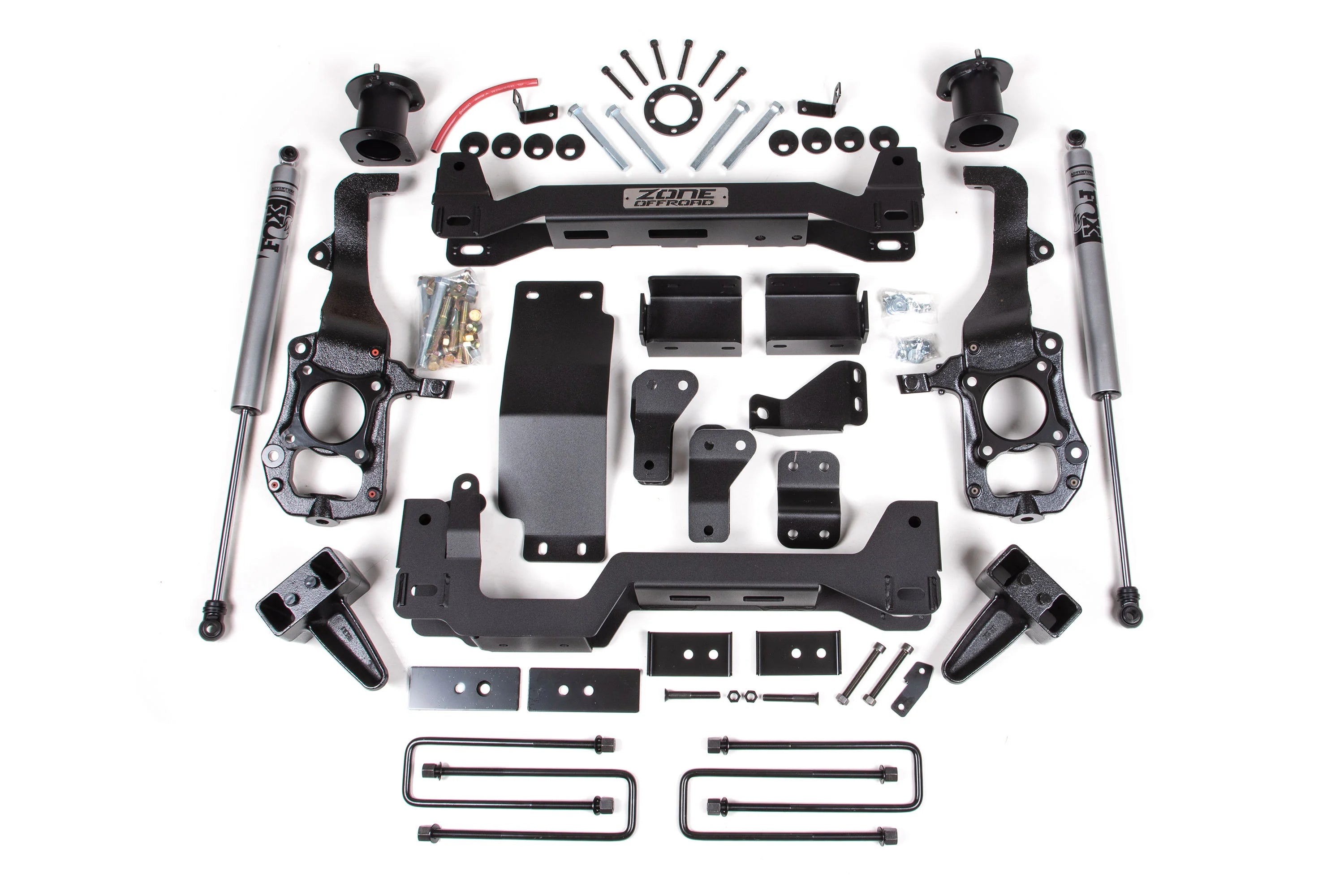

Included:
- (2) Front Frame Crossmembers
- (2) Steering Knuckles
- (2) Front Strut Spacers
- (2) FOX 2.0 Rear Shocks
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Differential Drop Bracket Set
- (1) Skid Plate
- (1) Hardware Pack
Fitment:
- 2021–2025 Ford F-150 4WD Gas Models
Note:
- 3 Year Warranty
- Does not fit diesel models
- Will not fit Tremor models
- Stock 20" wheels fit with tires up to 305/60R20
- Crash bar modification may be required with 37" tires
- Requires frame bracket modification during installation
- 2-piece driveshaft requires carrier bearing shim kit D5405
- Ford rear driveshaft recall 21S25 should be completed first
- Not compatible with CCD (Continuous Controlled Damping)
- 18" or larger wheels required; factory 17"/18" wheels excluded
- Professional installation and post-lift alignment recommended
