Zone Offroad 6 Inch Lift Kit with FOX Shocks For 2021-2025 Ford F-150 4WD
SKU:
ZONF90F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,547.60
- $1,547.60
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Upgrade the stance, clearance, and capability of your 2021–2025 Ford F-150 4WD with the Zone Offroad 6” Suspension Lift Kit. Engineered to deliver improved ground clearance and aggressive style, this system corrects suspension, steering, and driveline geometry while maintaining factory ride quality and handling. Designed for modern F-150 platforms, the kit provides clearance for up to 35–37” tires and delivers a confident, commanding presence on and off the road.
Zone Offroad includes high-strength crossmembers, redesigned steering knuckles, front strut spacers, a rear lift block system, and FOX 2.0 Adventure Series rear shocks for reliable performance. Built with Factory Protection Plus standards, this kit retains ESC compatibility, works with BlueCruise-equipped trucks, and is backed by industry-leading warranty coverage for peace of mind.
Fitment Notes: This lift kit does not fit diesel or Tremor models and requires frame bracket modification during installation. Trucks equipped with a two-piece rear driveshaft will require carrier bearing shim kit D5405 (not included). Some vehicles may be affected by Ford rear driveshaft recall 21S25; Zone Offroad recommends completing recall service prior to installation. A minimum 18" wheel is required, as factory 17" and 18" wheels cannot be reused. Stock 20" wheels may be used with tire sizes up to 305/60R20. Wheel backspacing and crash bar clearance should be verified, as certain wheel and tire combinations may require crash bar modification. This kit is not compatible with trucks equipped with CCD (Continuous Controlled Damping).
Features:
- Optimized kit design improves ground clearance and off-road protection
- Corrects suspension, steering, and driveline geometry for stable handling
- Redesigned steering knuckles maintain ESC system compatibility
- Front strut spacers lift vehicle without sacrificing factory ride quality
- Rear block options provide level to tail-high stance control
- FOX 2.0 rear shocks deliver fade-free damping and ride control
- Compatible with Ford BlueCruise driver-assist systems
- Clears up to 35–37 inch tires for aggressive stance and capability
Specifications:
- Brand: Zone Offroad
- Vehicle Drive Type: 4WD
- Front Lift Height: 6 inches
- Rear Lift Height: 5 inches (block dependent)
- Front Lift Method: Strut Spacers
- Rear Lift Method: Lift Block & U-Bolts
- Rear Shock Type: FOX 2.0 Adventure Series IFP
- Max Tire Size: 35–37 inches (trimming may be required)
- Wheel Requirement: 18 inches or larger
- ESC Compatibility: FMVSS No.126 Compliant

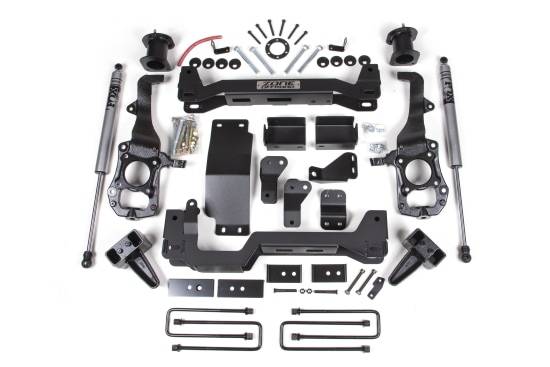

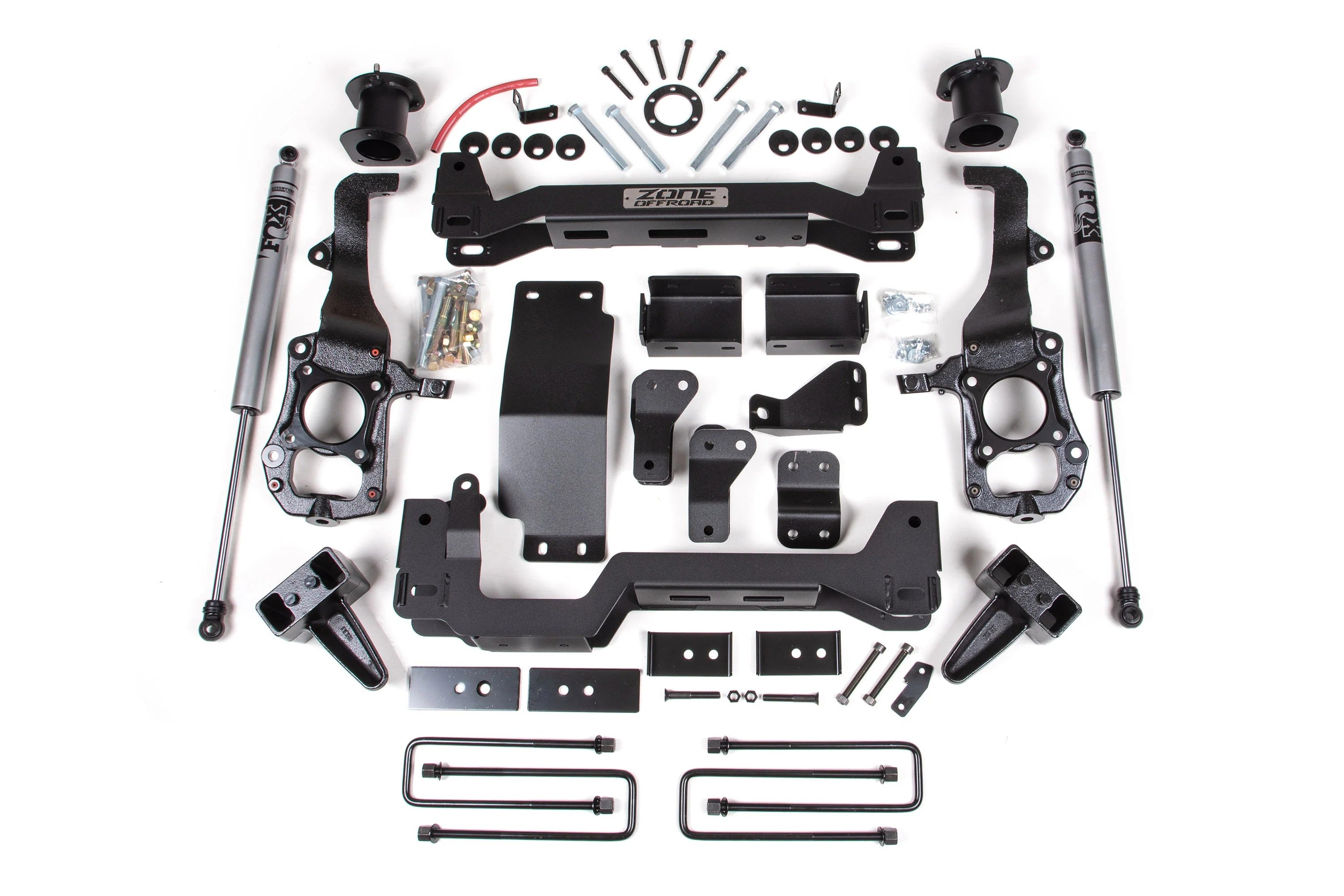

Included:
- (2) Frame Crossmembers
- (2) Steering Knuckles
- (2) Front Strut Spacers
- (2) FOX 2.0 Adventure Series Rear Shocks
- (2) Rear Lift Blocks
- (4) Rear U-Bolts
- (1) Differential Drop Bracket Set
- (1) Skid Plate
- (1) Hardware Kit
Fitment:
- 2021–2025 Ford F-150 4WD Gas Models
Note:
- 3 Year Warranty
- Does not fit diesel models
- Will not fit Tremor models
- Requires frame bracket modification during installation
- Crash bar modification may be required with larger tires
- 2-piece driveshaft requires carrier bearing shim kit D5405
- Will not work with CCD (Continuous Controlled Damping)
- Ford rear driveshaft recall (21S25) should be completed first
- 18" or larger wheels required; factory 17"/18" wheels not compatible
