Zone Offroad 6 Inch Lift Kit with FOX Shocks For 1997-2003 Ford F-150 4WD 4.6L/5.4L
SKU:
ZONF14F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,622.55
- $1,622.55
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 1997–2003 Ford F-150 the height, stance, and capability it deserves with the Zone Offroad 6” Suspension Lift Kit with FOX 2.0 Adventure Series Shocks. Engineered for maximum durability and proper suspension geometry, this system delivers increased ground clearance, improved steering angles, and the ability to run 35” tires—all while maintaining factory-like on-road comfort.
Built with high-strength crossmembers, CNC-machined steering knuckles, torsion drop brackets, add-a-leafs, and a reinforced skid plate, this lift kit ensures long-term reliability on daily-driven trucks, tow rigs, or weekend off-road builds. Paired with FOX 2.0 monotube shocks, this system provides exceptional damping, heat control, and performance on any terrain.
Features:
- 100% bolt-on lift system designed for fast, hassle-free installation
- CNC-machined knuckles correct steering angles and maintain control
- Heavy-duty 1/4-inch steel crossmembers restore suspension geometry
- FOX 2.0 shocks improve damping, heat control, and off-road stability
- Differential drop brackets maintain proper CV axle operating angles
- Add-a-leaf system increases rear load support and ride consistency
- Skid plate protects the differential from rocks, impacts, and debris
- Maintains smooth factory ride quality with improved tire clearance
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 6 inches
- Rear Lift Height: 5 inches
- Front Lift Method: Crossmember + Torsion Drop
- Rear Lift Method: Block & Add-A-Leaf
- Shocks Included: FOX 2.0 Adventure Series
- Shock Design: Monotube IFP with 5/8" chrome shaft
- Construction: High-strength 1/4” steel crossmembers
- Recommended Tire Size: Up to 35 x 12.50
- Recommended Wheel Backspacing: 4.5–5.0 inches

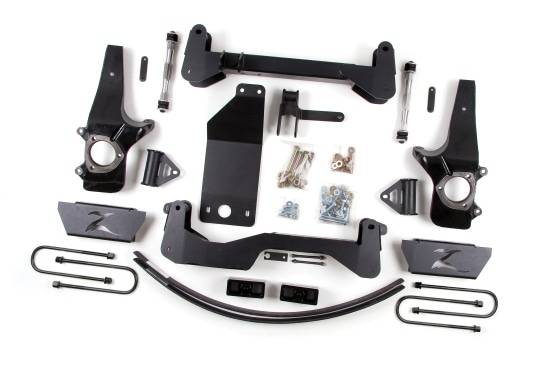

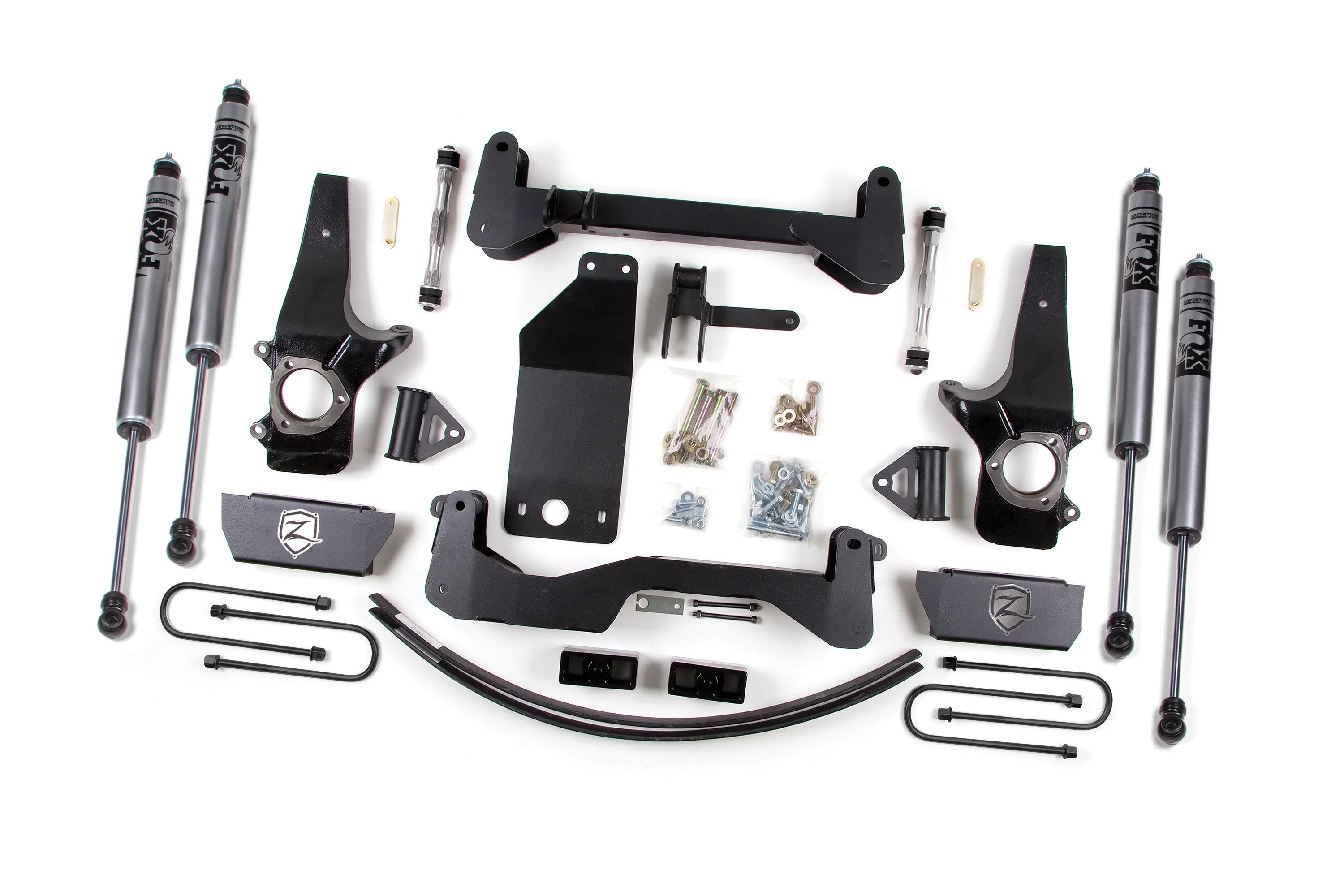

Included:
- (2) Front Crossmembers
- (2) CNC Machined Steering Knuckles
- (1) Differential Drop Bracket Set
- (1) Differential Skid Plate
- (2) Front FOX 2.0 Adventure Series Shocks
- (2) Rear FOX 2.0 Adventure Series Shocks
- (1) Rear Lift Block
- (4) Rear U-Bolts
- (2) Add-A-Leaf Springs
- (1) Sway Bar Extension Kit
- (1) Hardware Kit
Fitment:
- 1997-2003 Ford F-150 4WD 4.6L
- 1997-2003 Ford F-150 4WD 5.4L
Notes:
- 3 Year Warranty
- Check Alignment Cams: 1997-2003 F150's frequently did not include alignment cams, which are necessary to properly align the vehicle. Make sure to add if lifting your vehicle.
- Axle side shock mounts may need to be cut and welded farther from the axle tube for clearance to the shock when using the BDS NX2 shocks or FOX shocks mounted body down.
