Zone Offroad 6 Inch Lift Kit with FOX Shocks For 2005-2015 Toyota Tacoma 4WD
SKU:
ZONT3F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,471.65
- $1,471.65
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Give your 2005–2015 Toyota Tacoma the stance, capability, and ground clearance it deserves with the Zone Offroad 6” Suspension Lift Kit. Engineered for serious off-road performance, this system delivers increased wheel travel, improved approach angles, and the ability to run up to 35” tires with trimming. High-strength crossmembers, ductile iron knuckles, and top-mounted strut spacers work together to retain factory ride characteristics while maintaining proper geometry and ESC functionality.
A full-width belly skid plate adds underbody protection, while rear lift blocks establish a level stance and maintain suspension performance. Brake line, bump stop, and sway bar relocation brackets ensure proper operating angles throughout the full range of travel. Paired with FOX 2.0 Adventure Series rear shocks, this lift kit enhances stability, damping control, and overall driving confidence—both on road and off.
Features:
- High-strength crossmembers reposition control arms for proper geometry
- Ductile iron steering knuckles maintain alignment and ESC calibration
- Top-mounted strut spacers provide lift without opening the struts
- Full-width skid plate shields components during off-road use
- Rear lift blocks and U-bolts deliver a strong, level rear stance
- Brake line, sway bar, and bump stop brackets correct suspension angles
- FOX 2.0 IFP shocks improve ride control and enhance off-road stability
- Clears up to 35" tires for a taller, more aggressive appearance
Specifications:
- Brand: Zone Offroad
- Front Lift Height: 6 inches
- Rear Lift Height: 4 inches
- Lift Type: Crossmember + Strut Spacer Front / Block Rear
- Front Lift Method: High-strength crossmembers and strut spacers
- Rear Lift Method: Steel lift block and extended U-bolt kit
- Shocks Included: FOX 2.0 Adventure Series (Rear)
- Shock Type: IFP monotube, 2" steel body, 5/8" chrome-plated shaft
- Tire Fitment: Up to 35 x 12.50 (trimming required)
- Wheel Requirement: 18" or larger aftermarket wheels required

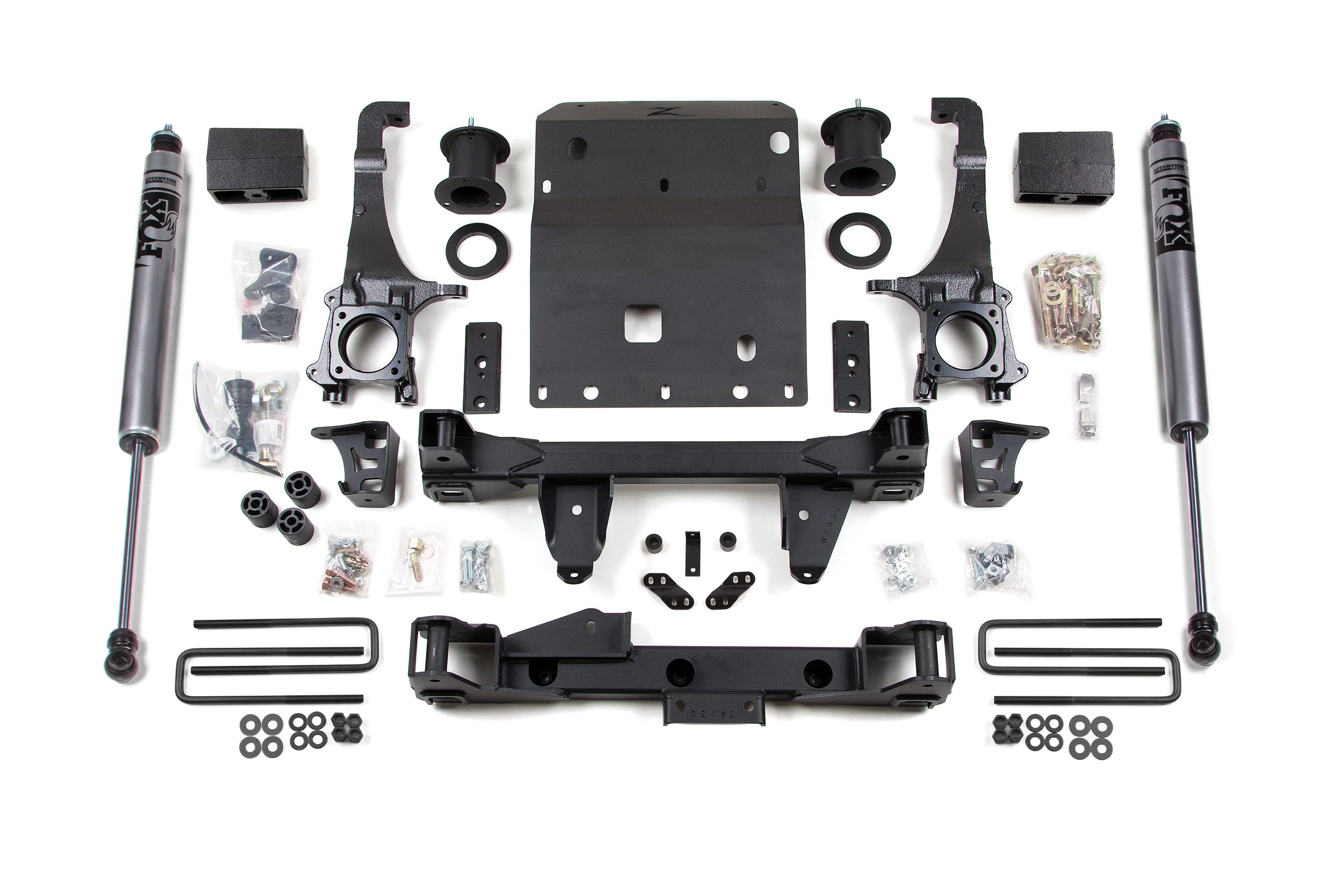

Included:
- (2) High-Strength Front Crossmembers
- (2) Ductile Iron Steering Knuckles
- (2) Top-Mounted Strut Spacers
- (1) Full-Width Belly Skid Plate
- (2) Rear Lift Blocks
- (4) Extended Rear U-Bolts
- (2) FOX 2.0 Adventure Series Rear Shocks
- (1) Brake Line Relocation Bracket Set
- (1) Sway Bar Relocation Bracket Set
- (1) Bump Stop Relocation Kit
- (1) Complete Hardware Kit
Fitment:
- 2005-2015 Toyota Tacoma 4WD
Notes:
- 3 Year Warranty
- Will NOT work on TRD Pro Models
- System will also work on RWD PreRunner models
- Factory wheels cannot be reinstalled with this lift kit, 18" or larger aftermarket wheels required
Product Specs
SKU:
ZONT3F
Brand:
Zone Offroad
