Zone Offroad 6 Inch Lift Kit with Nitro Shocks For 2009-2013 Ford F-150 4WD 5.0L/5.4L

SKU: ZONF75LN

SELECT FITMENT

See If This Product Fits Your Vehicle

$1,691.61
$1,691.61

Free Shipping

Free ground shipping on all orders over $99
Description

Upgrade your 2009–2013 Ford F-150 4WD with the Zone Offroad 6” Suspension Lift Kit equipped with Nitro shocks and a 4-inch rear block. Designed for trucks powered by the 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, or 3.5L EcoBoost engines, this system delivers the aggressive stance and clearance needed to run up to 37-inch tires. Engineered with heavy-duty 1/4-inch steel crossmembers, CNC-machined steering knuckles, and extended-length Nitro struts, this lift kit maintains proper steering geometry while improving both on-road comfort and off-road performance.

Built for durability and long-term reliability, the kit includes a differential skid plate for added protection and differential drop brackets to reduce CV axle stress. The 4-inch rear lift block replaces the factory block and provides a level to slightly tail-low stance. With included Zone Nitro Series shocks, this kit offers balanced ride quality and enhanced control for daily driving or weekend trail use.

Features:

  • 1/4-inch steel crossmembers correct suspension geometry
  • CNC-machined steering knuckles maintain steering angles
  • Zone Nitro Series shocks improve ride and control
  • Heavy-duty differential skid plate adds protection
  • Differential drop brackets reduce axle operating angles
  • Maintains factory front track width and handling
  • Clears up to 37-inch tires with proper wheels
  • 4-inch rear block provides level to slight tail-low stance

Specifications:

  • Brand: Zone Offroad
  • Front Lift Height: 6 inches
  • Rear Lift Height: 4 inches
  • Rear Block Option: 4-inch
  • Front Lift Method: Crossmember and Replacement Strut
  • Rear Lift Method: Lift Block
  • Shock Type: Zone Nitro Series Gas Charged
  • Drive Type: 4WD Only
  • Engine Compatibility: 3.7L V6, 4.6L V8, 5.0L V8, 5.4L V8, 3.5L EcoBoost
  • Maximum Tire Size: 37 x 12.50
  • Recommended Backspacing: 5 inches

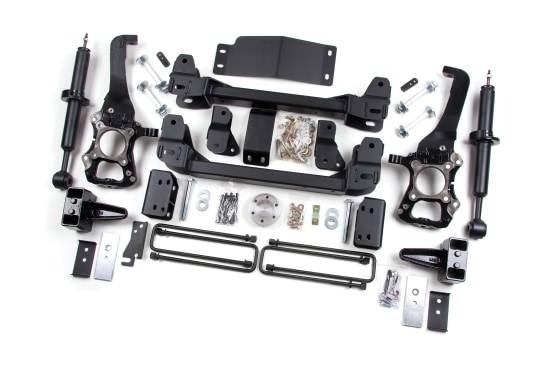

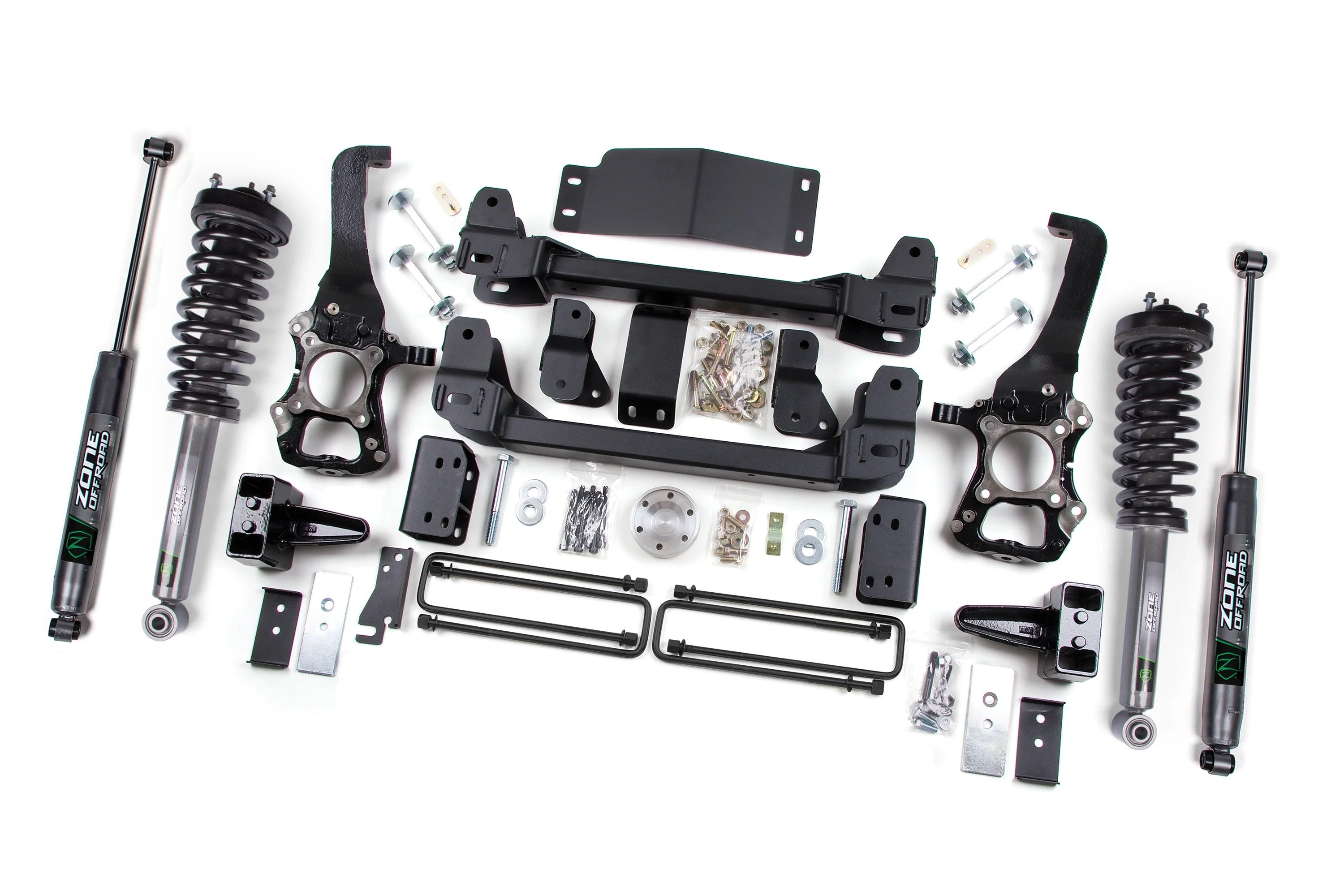

Included:

  • (2) Front Crossmembers
  • (2) CNC-Machined Steering Knuckles
  • (2) Differential Drop Brackets
  • (1) Differential Skid Plate
  • (1) Driveshaft Spacer
  • (2) Zone Nitro Series Front Struts
  • (2) Zone Nitro Series Rear Shocks
  • (2) Rear Lift Blocks
  • (4) Rear U-Bolts
  • (1) Complete Hardware Kit

Fitment:

  • 2009-2013 Ford F-150 4WD 4.6L V8
  • 2009-2013 Ford F-150 4WD 5.4L V8

Notes:

  • 3 Year Warranty
  • Will not fit Raptor models
  • Will not fit 7 lug applications
  • This kit is offered with the 4" block will net a level to slightly tail low stance
  • Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket.
  • Although rare, some models with 1-piece rear driveshaft may require rear driveshaft spacer kit to ensure sufficient spline engagement.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
