Zone Offroad 6 Inch Lift Kit w/FOX Shocks For 2014 Ford F-150 4WD 5.0L/3.5L
SKU:
ZONF40F
SELECT FITMENT
See If This Product Fits Your Vehicle
- $1,477.65
- $1,477.65
- Unit price
- per
Free Shipping
Free ground shipping on all orders over $99
Take your 2014 Ford F150 4WD to the next level with this Zone Offroad 6-inch Suspension Lift Kit featuring the 5-inch rear block option and premium FOX 2.0 Adventure Series rear shocks. Engineered for strength, performance, and proper suspension geometry, this system includes heavy-duty crossmembers, CNC-machined steering knuckles, strut spacers, and a rear block kit designed to deliver a level to slightly tail-high stance. Maintain factory track width while achieving aggressive clearance for up to 37-inch tires.
Built with high-strength 1/4-inch steel crossmembers and a differential skid plate for added protection, this lift kit improves durability and off-road capability without compromising steering angles or drivability. The FOX 2.0 monotube shocks feature an internal floating piston design, race-developed high-flow pistons, and application-specific valving to provide controlled ride quality on and off the pavement.
Features:
- 6-inch front lift for aggressive stance and clearance
- 5-inch rear block for level to tail-high appearance
- FOX 2.0 monotube shocks for superior ride control
- CNC-machined steering knuckles correct steering angles
- 1/4-inch steel crossmembers improve suspension geometry
- Differential skid plate enhances off-road protection
- Maintains factory front track width after installation
- Clears up to 37-inch tires with proper wheel setup
Specifications:
- Brand: Zone Offroad
- Lift Height Front: 6 Inches
- Lift Height Rear: 5 Inches
- Front Lift Method: Crossmember and Strut Spacer
- Rear Lift Method: Block Kit
- Rear Shock Type: FOX 2.0 Adventure Series
- Shock Body Diameter: 2 Inch
- Shock Design: IFP Monotube
- Construction: High-Strength Steel Components
- Track Width Change: No Change to Factory Width

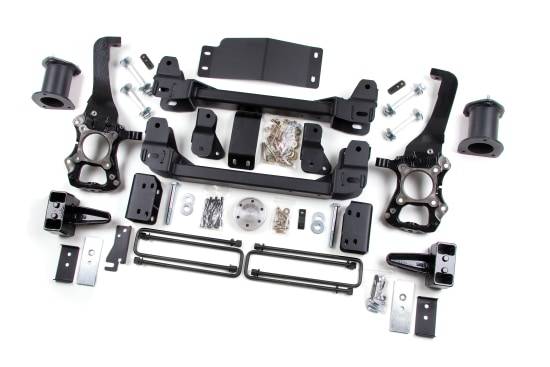

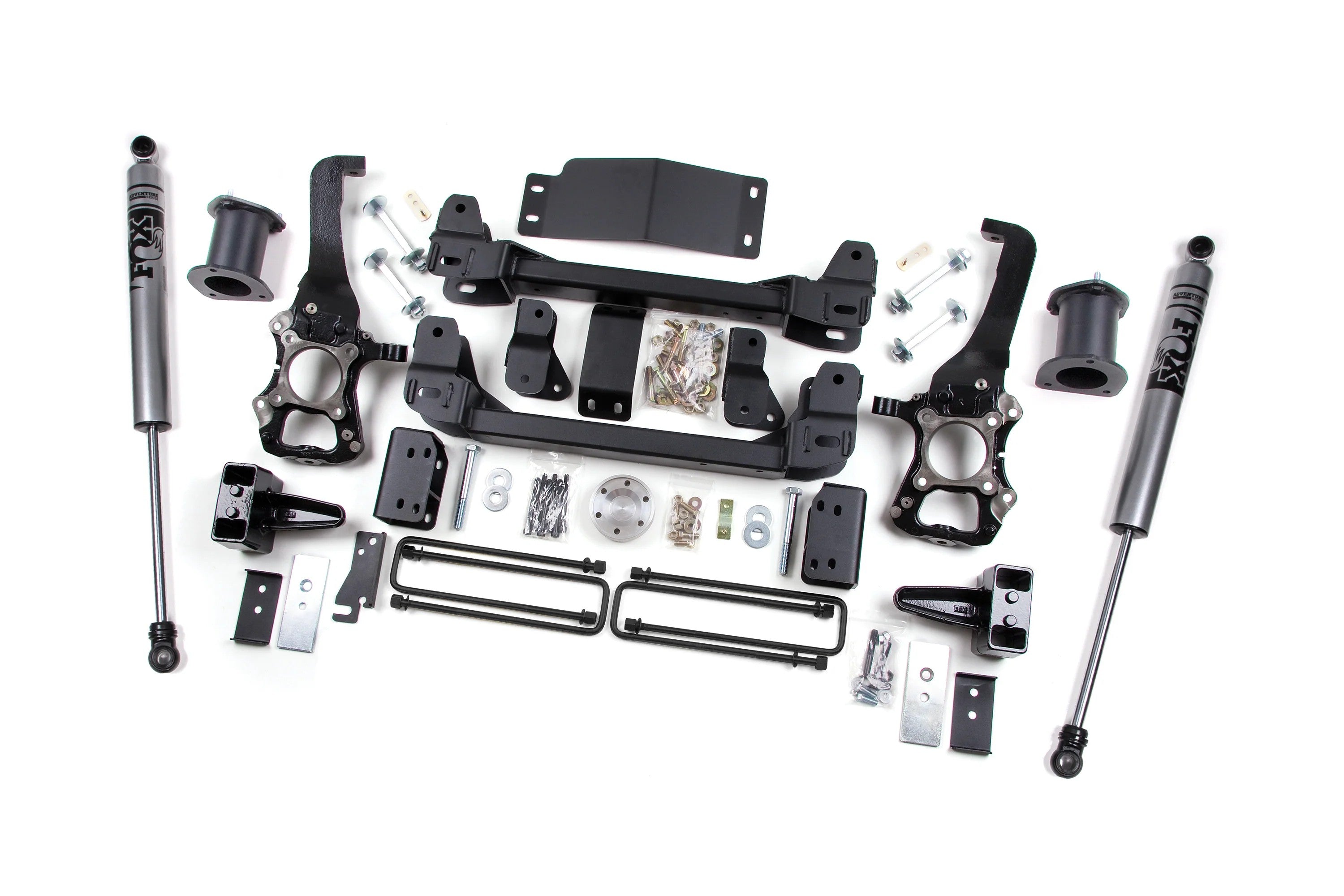

Included:
- (2) Frame Crossmembers
- (2) Steering Knuckles
- (2) Strut Spacers
- (2) Rear Lift Blocks – 5 Inch
- (4) U-Bolts
- (2) Differential Drop Brackets
- (1) Front Differential Skid Plate
- (2) FOX 2.0 Rear Shocks
- (1) Complete Hardware Kit
Fitment:
- 2014 Ford F-150 5.0L V8 4WD
- 2014 Ford F-150 3.5L V6 EcoBoost 4WD
- 2014 Ford F-150 3.7L V6 4WD
Note:
- 3 Year Warranty
- The 5" block will net a level to slightly tail high stance
- May require bumper or fender trimming depending on wheel and tire choice.
- Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
Product Specs
SKU:
ZONF40F
Brand:
Zone Offroad
